Synergy Manufacturing is an industry innovator and manufacturer of high-end automotive performance components. These components are predominantly made in the USA and are primarily for the off road aftermarket. Synergy has specialized in the manufacturing and distribution of premium suspension products and systems since 2005.

Install Instructions:

• For instructions, CLICK HERE

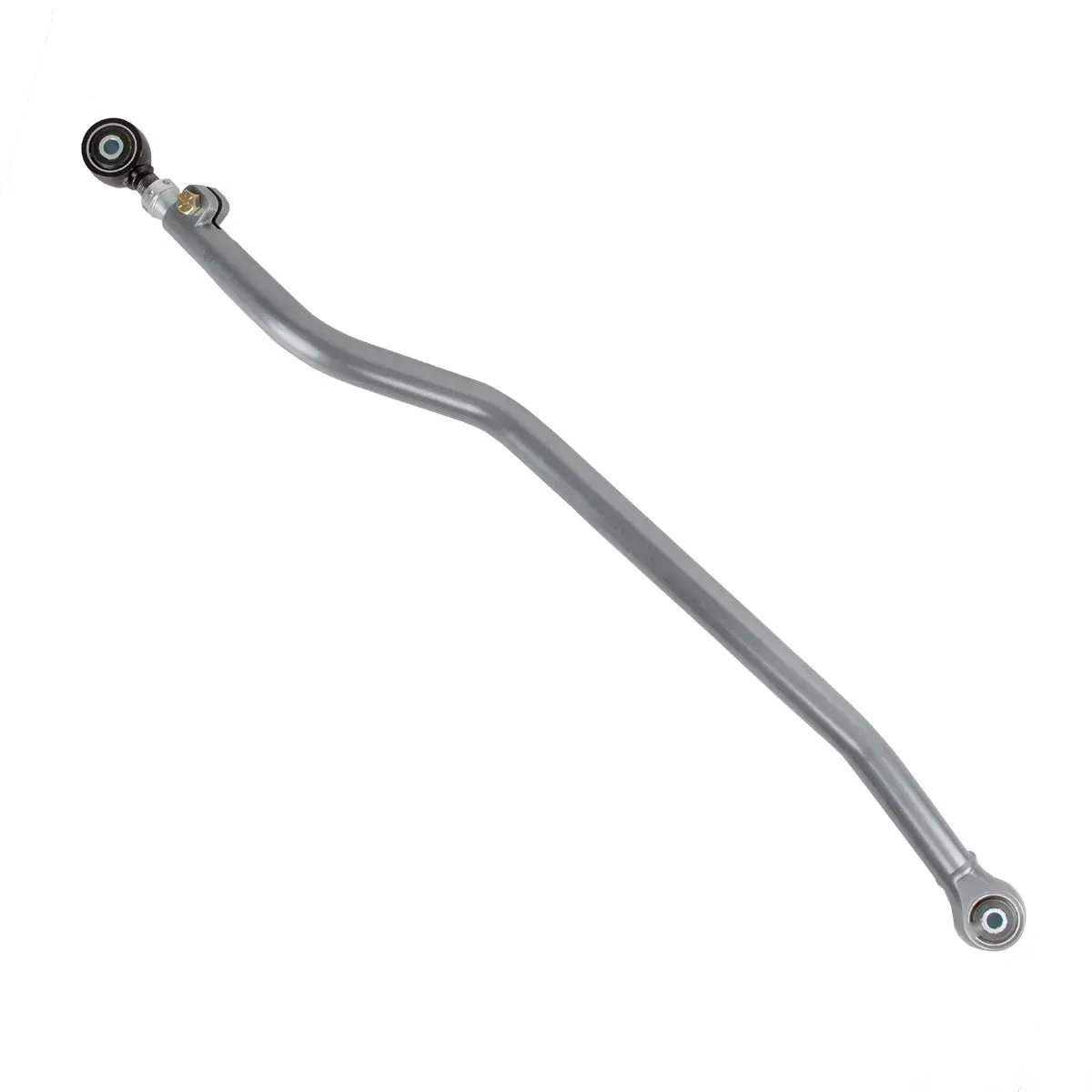

Features:

• Bent to clear most aftermarket differential covers
• Retains factory track bar mounting bolts & hardware
• Made from high quality 1.5" x .250" wall DOM tubing
• Allows centering of front axle when running a suspension lift
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing control arm mounting bolt
• Features Synergy Dual Durometer Bushings (DDB) with Teflon? bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

Fitments:

• Dodge Ram 2500 4x4 2003-2013
• Dodge Ram 3500 4x4 2003-2012
• Dodge Ram 1500 Megacab 4x4 2006-2008

Note:

• The trackbar can be adjusted from 38.625" (.25" shorter than stock) to 39.438". This allows the track bar to be used when lowering trucks for race applications up 3" lower than factory height and lifted applications up to 6.0" over factory height.
• The replacement adjustable joint is "4803-41" for 94-07 trucks and "4803-42" for 08-13 trucks
• Replacement polyurethane bushing halves are?4306-01. Polyurethane bushings can be upgraded to Dual Durometer Bushings (DDB) one of two ways depending on bolt size:
  • 94-07 trucks with 14mm or 9/16" bolt: Replace with "4323-01" Dual Durometer Bushing (DDB) or use "8529-01" Retrofit Kit.
  • 08-13 trucks with 16mm or 5/8" bolt: Must use "8529-01" Retrofit Kit.
