Synergy Manufacturing is an industry innovator and manufacturer of high-end automotive performance components. These components are predominantly made in the USA and are primarily for the off road aftermarket. Synergy has specialized in the manufacturing and distribution of premium suspension products and systems since 2005.

Install Instructions:

• For instructions, CLICK HERE

Features:

• Bent to clear most aftermarket differential covers
• Retains factory track bar mounting bolts & hardware
• Made from high quality 1.50 inch x .250 wall DOM
• Allows centering of rear axle when running a suspension lift
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Will fit 0-7" lifts (Rear track bar relocation bracket recommended for lifts over 2". See?8076?or?8056)

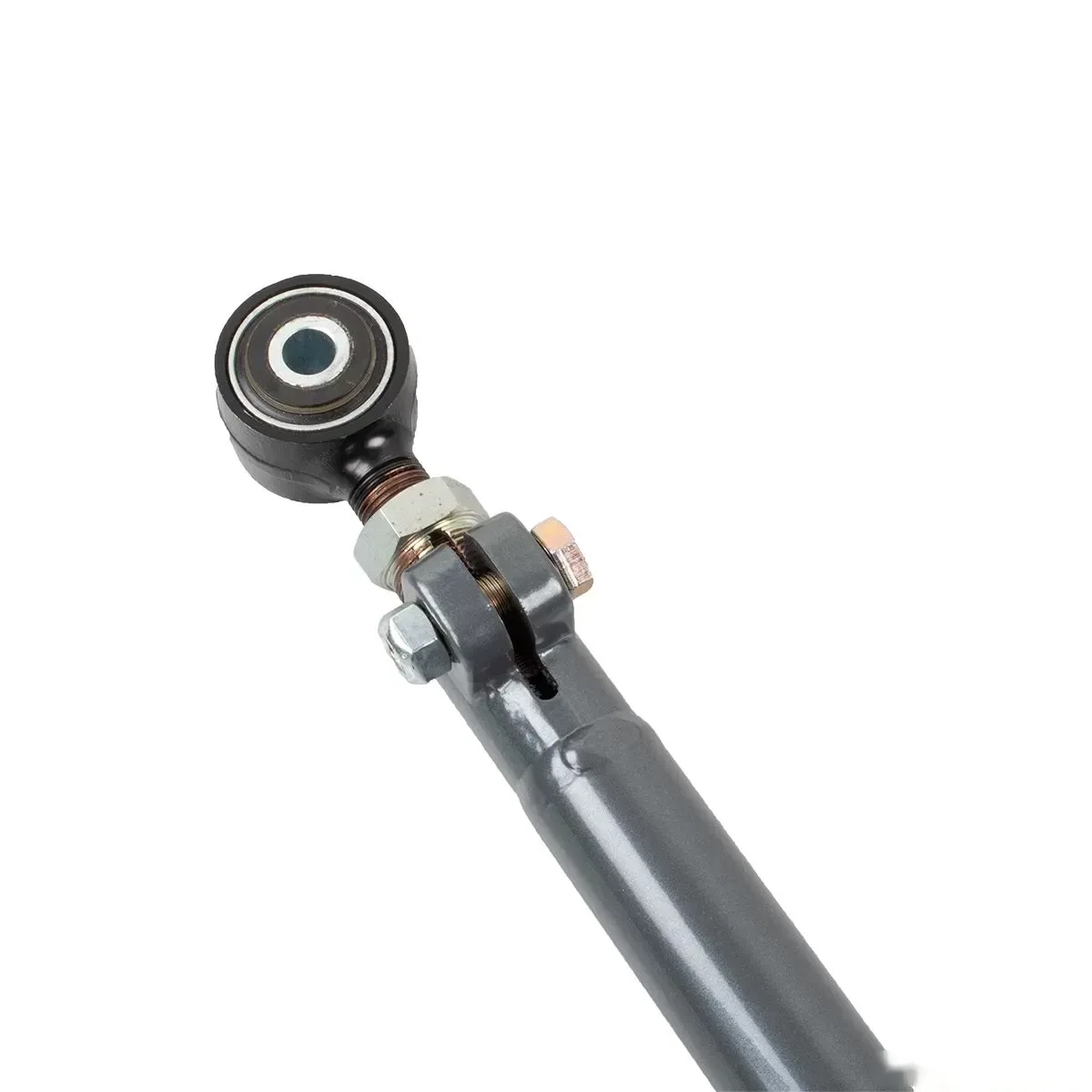

• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing control arm mounting bolt

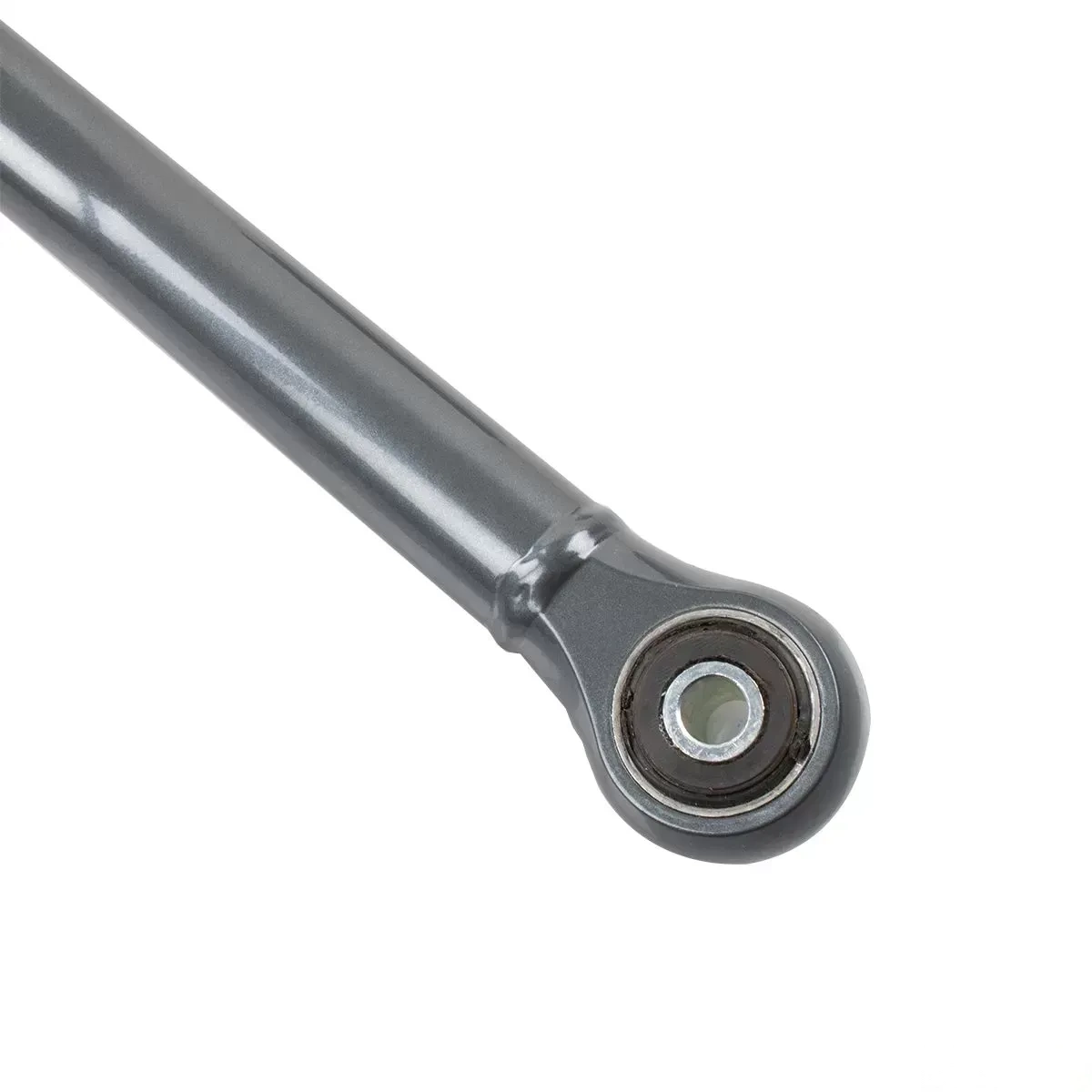

• Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
• Measured in a straight line from center of bolt hole to center of bolt hole: MAX EXTENDED LENGTH: 40.500" | MIN COLLAPSED LENGTH: 39.750"

Includes:

• (1) Grade 8 Pinch Bolts & Hardware
• (1) Synergy Double Adjuster Sleeve

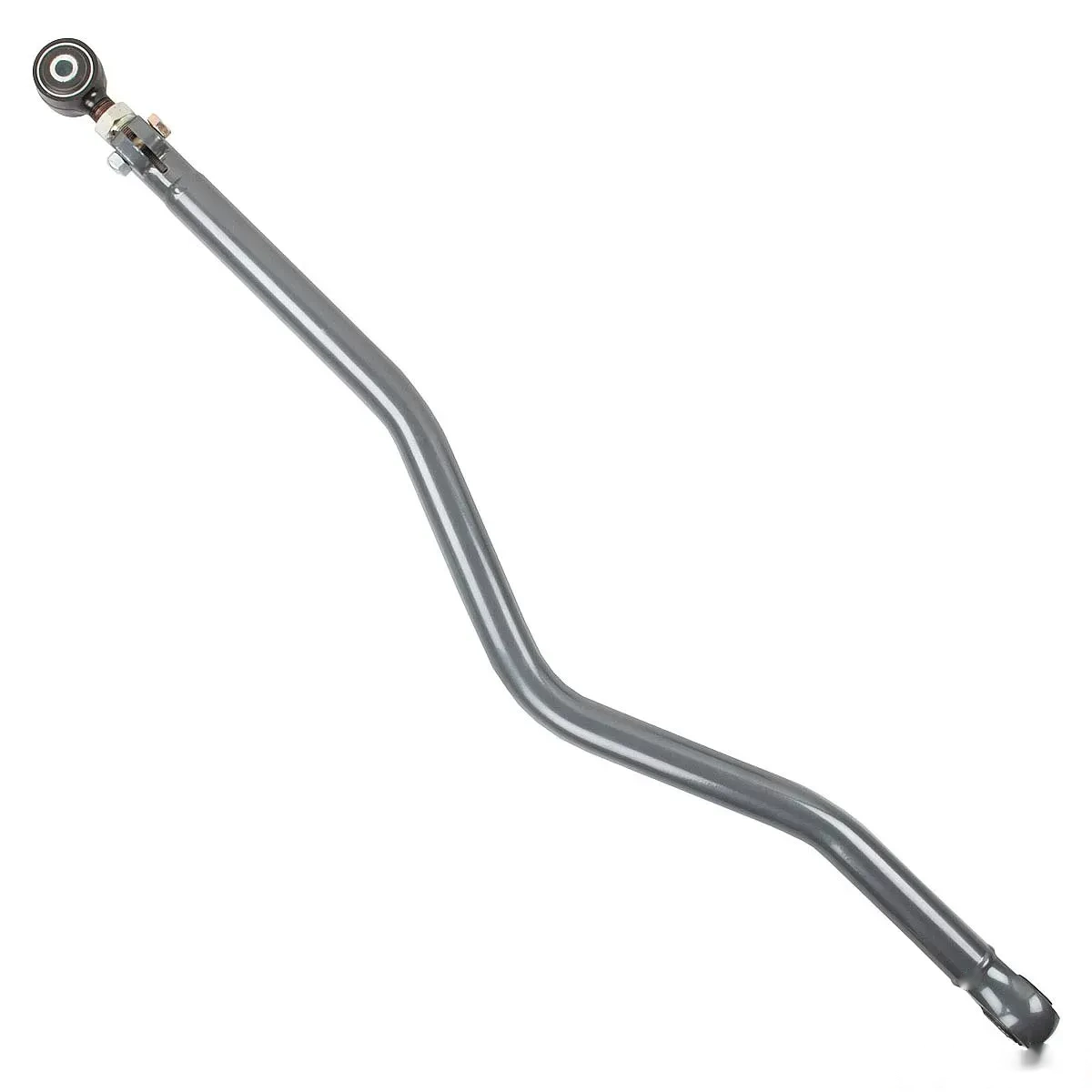

• (1) Synergy Jeep JK Rear Track Bar

Notes:

• 8062 has been superseded by 8062-02
• 8062-02 - The replacement adjustable joint is?4811-01?and the replacement bushings is?4327-01
