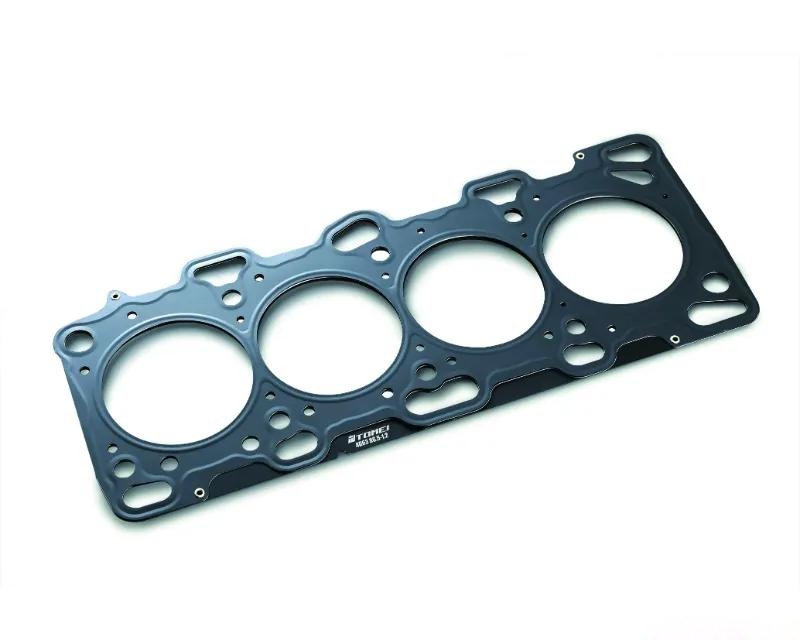

Tomei TA4070-MT01C Head Gasket

The Tomei TA4070-MT01C is engineered specifically for the Mitsubishi 4G63 engine, providing a robust solution for high-performance applications. With a bore diameter of 86.5mm and a thickness of 1.5mm, this head gasket is designed to withstand the increased combustion pressures typical of modern performance builds.

Material and Construction

This head gasket is constructed from high-quality stainless steel, chosen for its excellent heat conductivity. The material allows for efficient heat distribution, reducing the risk of overheating and subsequent failure. The natural high tensile strength of stainless steel enhances the joint rigidity between the cylinder head and the block, minimizing the potential for warping under extreme stress loads.

Features

• Bore: 86.5mm
• Thickness: 1.5mm
• Material: Stainless Steel
• Includes: Head Gasket, Throttle Body Gasket, Intake Manifold Gasket, Exhaust Manifold Gasket, and Oil Gallery Orifice
• Increased engine durability
• Greater heat resistance
• Improved reliability

Specifications

• Model: Mitsubishi 4G63

Installation Instructions

• For detailed installation instructions, CLICK HERE.

Fitment

• Mitsubishi EVO4-9 (1996-2007)

Note

• Images are for marketing purposes only; the actual product may vary.
