Tomei TA4010-NS05C Head Gasket

The Tomei TA4010-NS05C head gasket is engineered for high-performance applications, specifically designed for the Nissan Skyline GT-R R34 models from 1999 to 2002. This gasket is a crucial component for those looking to maintain optimal engine performance under increased combustion pressures.

Material and Construction

Constructed from high-quality stainless steel, the TA4010-NS05C offers superior heat conductivity, ensuring even heat distribution and efficient cooling. This material choice enhances reliability, significantly reducing the risk of blown head gaskets often associated with high-performance engines.

Technical Specifications

• Bore Diameter: 87.0mm
• Thickness: 1.8mm

Features and Benefits

• Improved joint rigidity between the cylinder head and block, minimizing distortion under high stress
• Enhanced engine durability, capable of withstanding the demands of performance applications
• Increased heat resistance, ensuring longevity even in extreme conditions

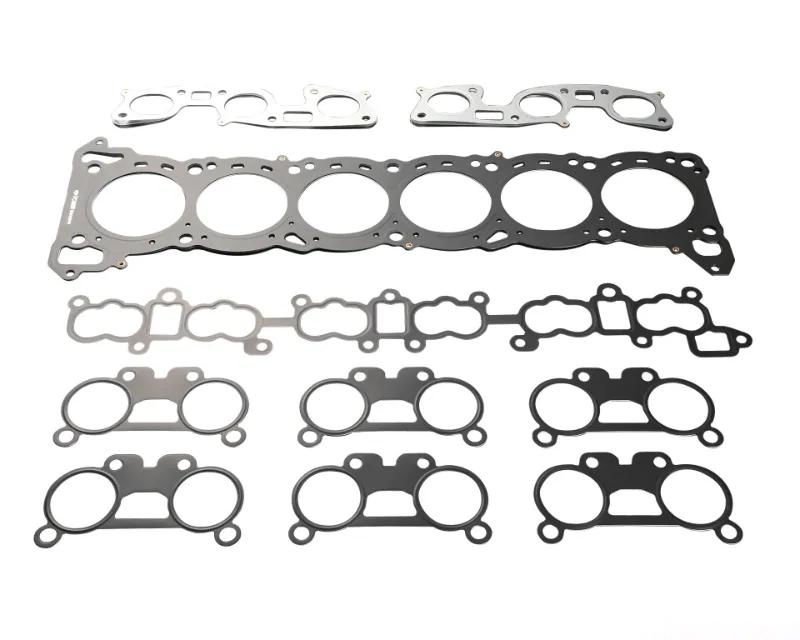

• Includes essential gaskets: head gasket, throttle body gasket, intake manifold gasket, exhaust manifold gasket, and oil gallery orifices

Installation Notes

Proper installation is critical for achieving maximum sealing pressure. Ensure that torque values on all head studs and bolts are adhered to, as the first three threads bear the most stress. This attention to detail will help maintain an optimal compression ratio and engine performance.

Fitment

• Nissan Skyline GT-R R34 (1999-2002)

For those building or maintaining a Skyline GT-R R34, the Tomei TA4010-NS05C head gasket is a reliable choice that meets the rigorous demands of high-performance engines.
