If you're diving into the world of turbocharging, you'll want to check out this Multi Range Billet Actuator. It's not just any actuator; it's built tough with a reinforced forged billet construction that can handle some serious power. With six springs included, you can fine-tune your boost like a pro. The cool part? You can mix and match up to three springs to find that sweet spot for your setup. Plus, the swivel type nipple makes routing hoses a breeze, giving you flexibility where you need it most.

Now, let's talk about the Billet Compressor Wheel. This isn't your run-of-the-mill cast wheel; it's been designed from the ground up to outperform those old-school options. Made from aerospace-grade materials, this lightweight beauty has thinner blades and a larger surface area, which means you get way better airflow and quicker turbo spool. It's a game changer for anyone looking to boost their ride's performance.

Specifications:

• Model: Nissan SR20DET
• Target HP: 40
• Bearing Type: Ball Bearing
• Initial Boost Setting: 1 kgf/cm²
• Compressor Wheel:
  • IND: 52 mm
  • EXD: 68 mm
  • Trim: 6
  • Blades: 6
  • Material: A261
  • Production: CNC Billet
• Turbine Wheel:
  • EXD: 54 mm
  • IND: 61 mm
  • Trim: 7
  • Material: K41
  • Production: Cast
• Compressor Housing:
  • IND: 53 mm
  • EXD: 38.7 mm
  • A/R: 0.62
• Turbine Housing:
  • IND: T2
  • EXD: SR20DE
  • A/R: 0.57

Install Instructions:

• For detailed instructions, CLICK HERE.

Fitment:

• Nissan 13 Silvia (1988-1994)
• Nissan 14 Silvia (1995-1998)
• Nissan 15 Silvia (1999-2002)
• Nissan 180SX (1989-1999)

This turbocharger kit is a solid fit for:

• Nissan 180SX (1989-1998)
• Nissan 240SX S13 (1989-1994)
• Nissan 240SX S14 (1995-1998)

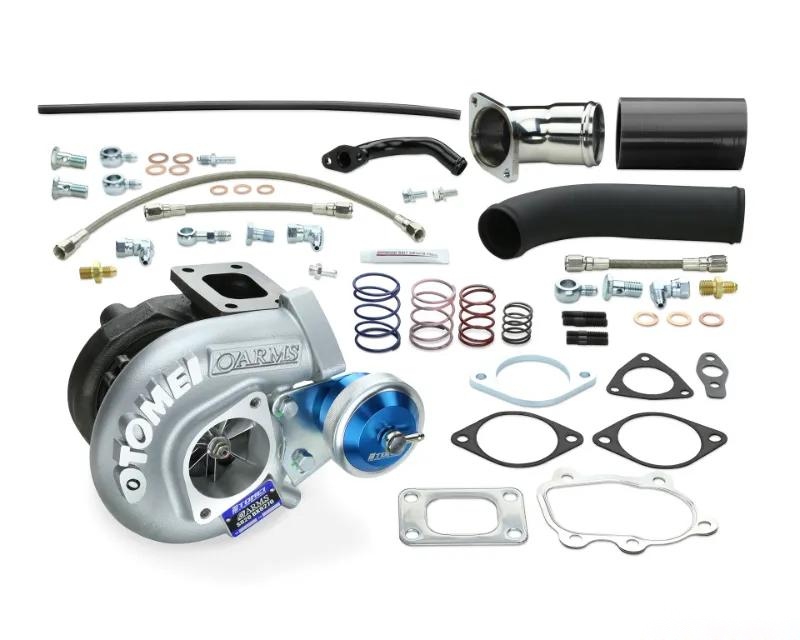

• Nissan Silvia S15 (1999-2002) - TB403A-NS08A Tomei BX7960 SR20DET Ball Bearing Turbocharger Arms Kit.
