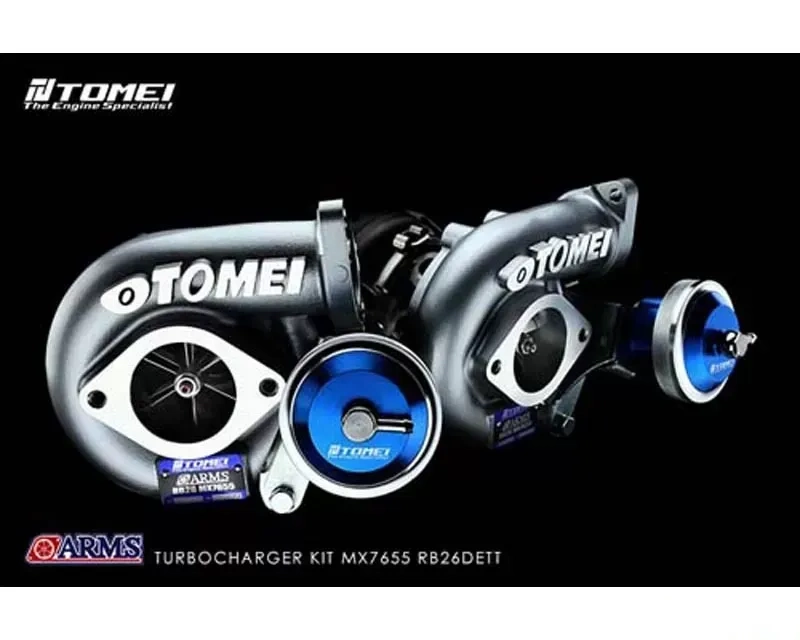

Tomei ARMS Mx7655 Turbocharger for RB26DETT

The Tomei ARMS Mx7655 Turbocharger is engineered specifically for the Nissan RB26DETT powertrain, providing a robust solution for those looking to enhance their turbo performance. With a capability of up to 580 horsepower, this turbocharger serves as a premium bolt-on upgrade for RB-equipped chassis, making it an ideal choice for tuners aiming for significant power boosts.

Key Features

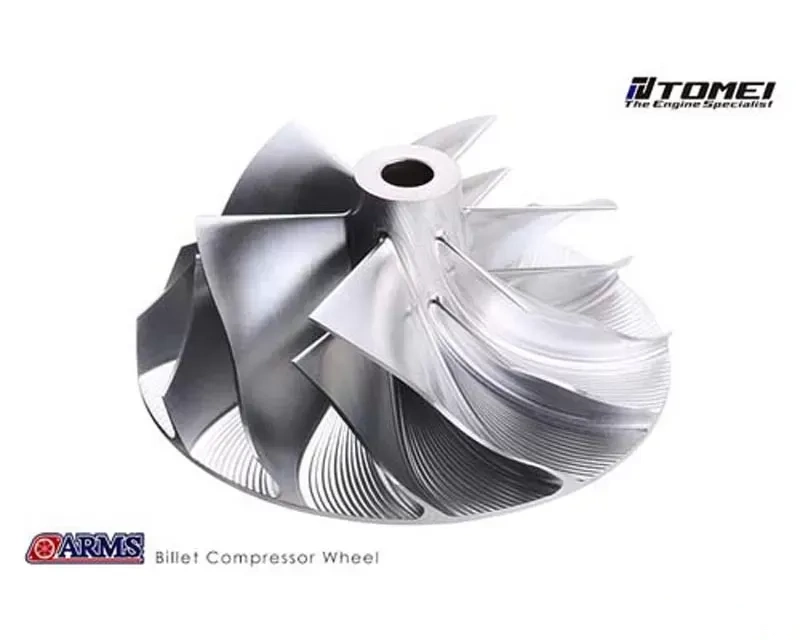

• Billet Compressor Wheel: Crafted from aerospace-grade materials, the new billet compressor wheel offers superior durability and weight savings over traditional cast options. Its thinner blades and larger surface area enable improved airflow and quicker spool times.

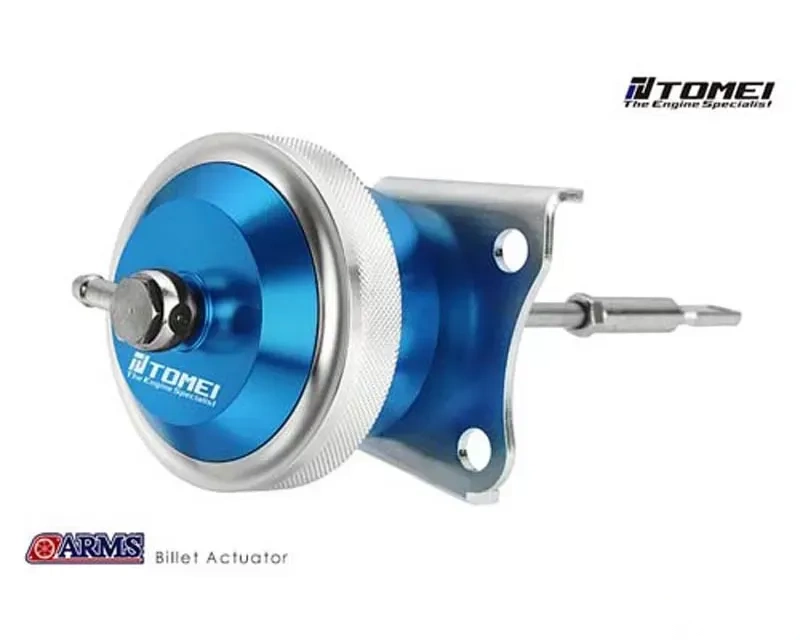

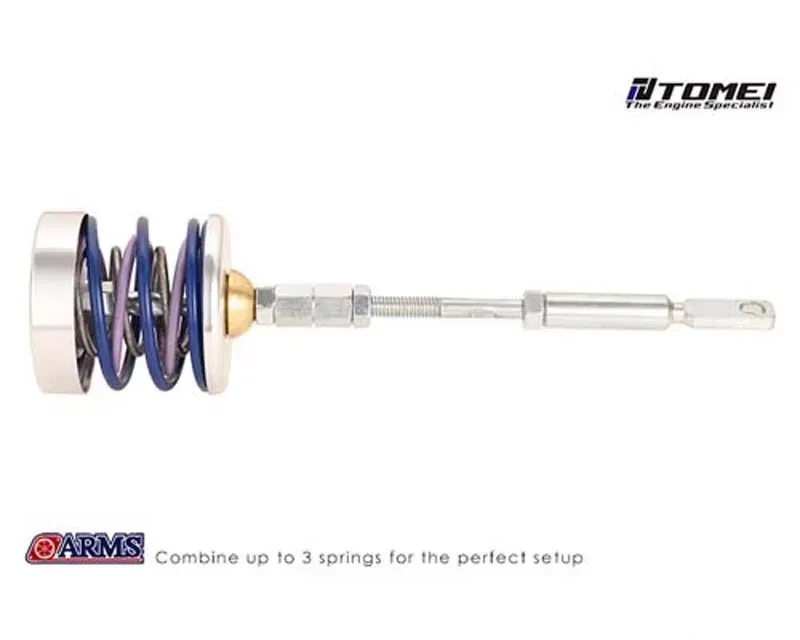

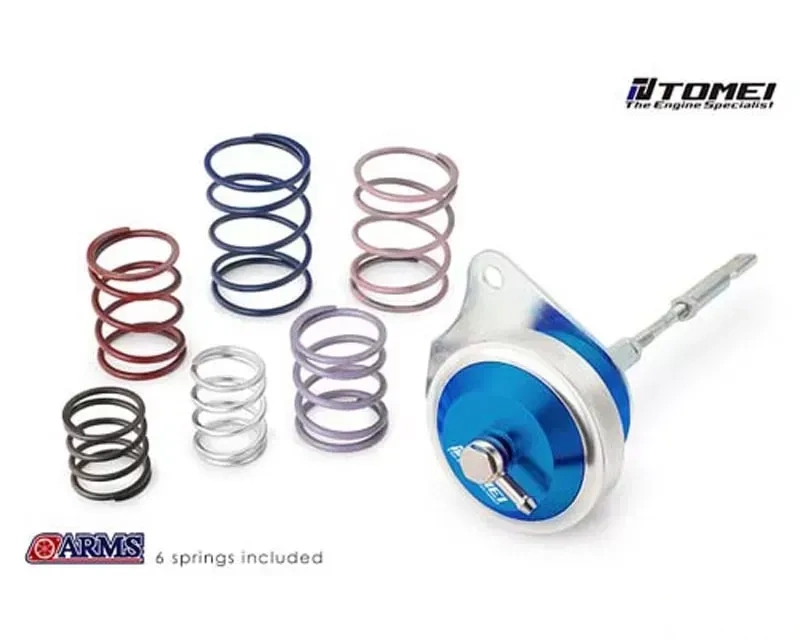

• Multi-Rate Billet Actuator: The large capacity actuator features a reinforced forged construction with six interchangeable springs, allowing for precise boost adjustments. The swivel-type nipple design enhances flexibility in hose routing.

Specifications

• Compressor Wheel:
  • Inducer Diameter (mm): 50
  • Exducer Diameter (mm): 68
  • Trim: 5
  • Material: A261
  • Production: CNC Billet
• Turbine Wheel:
  • Exducer Diameter (mm): 47
  • Inducer Diameter (mm): 56
  • Trim: 7
  • Material: K41
  • Production: Cast
• Compressor Housing:
  • Inducer Diameter (mm): 51
  • Exducer Diameter (mm): 38.7
  • A/R: 0.74
• Turbine Housing:
  • Inducer: T2
  • Exducer: RB26DET
  • A/R: 0.73
  • Initial Boost Setting: 1.0 kgf/cm²

Installation Notes

• For detailed installation instructions, CLICK HERE.

Confirmed Fitment

• Nissan Skyline R32 (1989-1994)
• Nissan Skyline R33 (1995-1998)
• Nissan Skyline R34 (1999-2002)
