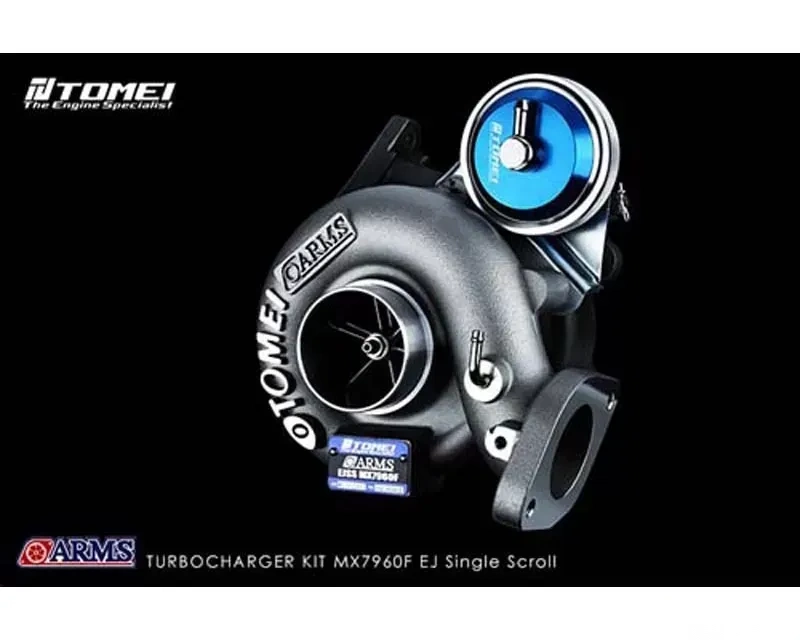

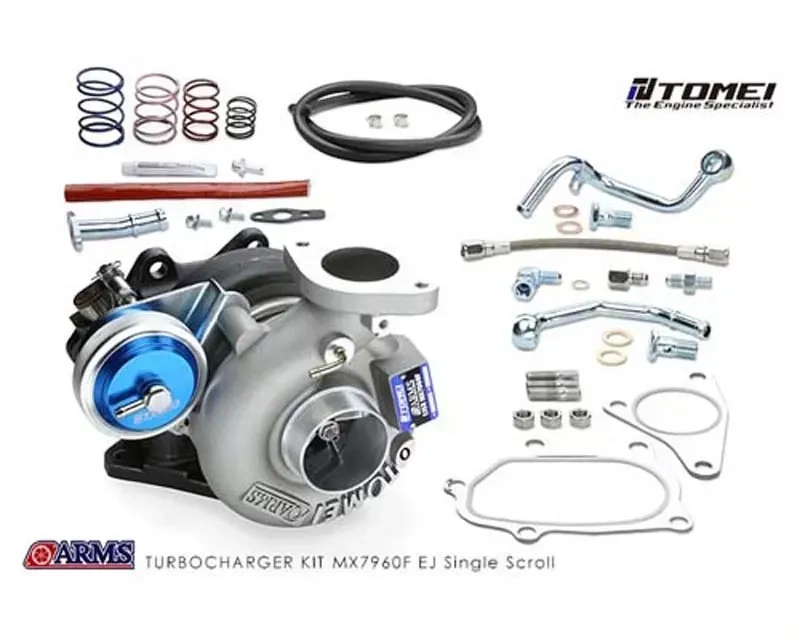

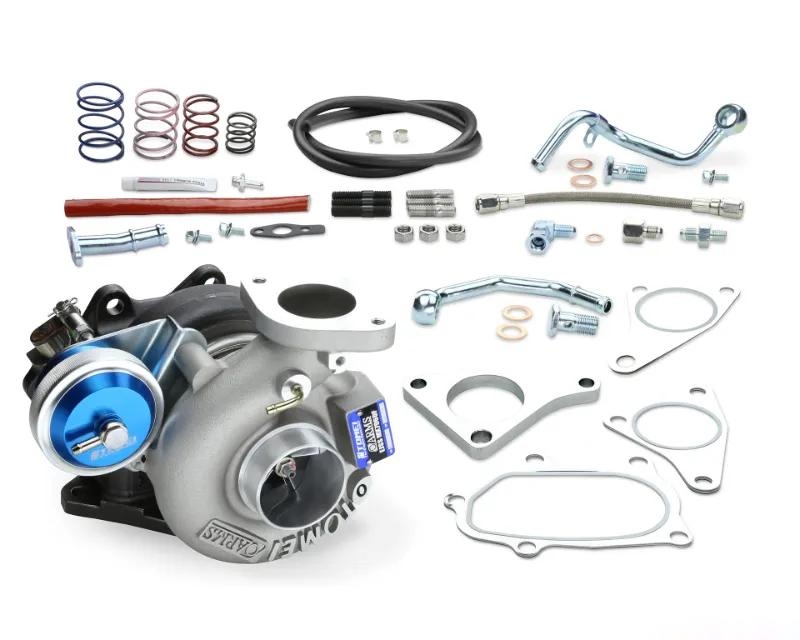

Tomei TB401A-SB01D Turbocharger

Introducing the Tomei TB401A-SB01D Turbocharger, a cutting-edge component designed to enhance your vehicle's performance. This turbocharger builds upon the legacy of the original M-Series turbo design, integrating advanced features that promise to elevate your driving experience.

Key Features:

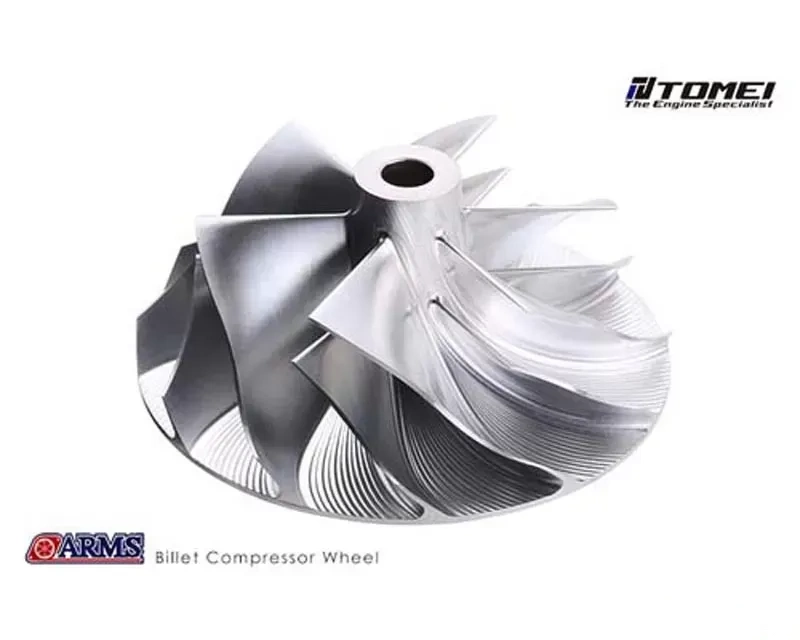

Lightweight Billet Compressor Wheel: Crafted from aerospace-grade materials, this newly designed wheel is not only lightweight but also offers improved airflow and turbo spool thanks to its thinner blades and larger surface area.

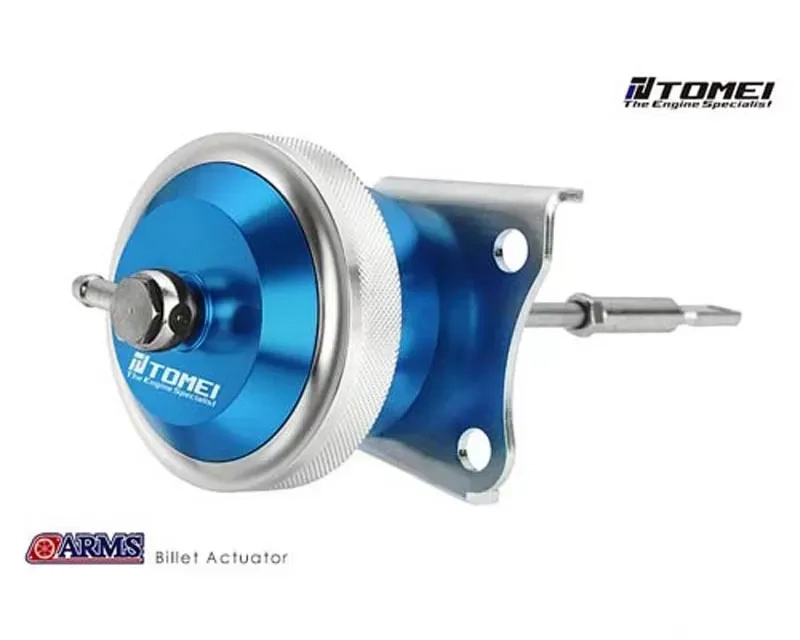

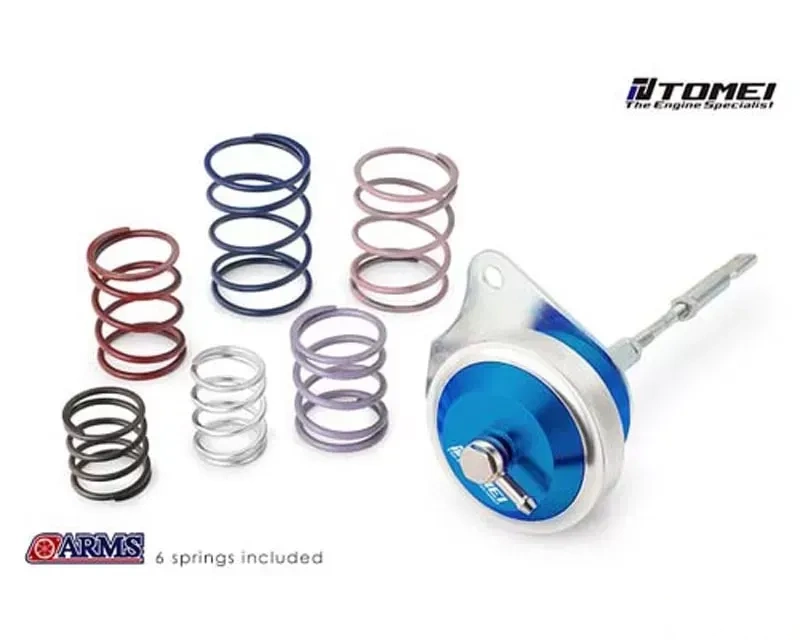

Multi-Rate Billet Actuator: The TB401A-SB01D includes a robust multi-rate actuator with a reinforced forged construction. It comes with six springs that allow for precise boost adjustments, ensuring you can dial in your setup for optimal performance.
Swivel Type Nipple: This feature provides greater flexibility when routing hoses, making installation easier and more efficient.

Specifications:

Compressor Wheel:
- Inducer Diameter (mm): 52
- Exducer Diameter (mm): 68
- Trim: 6
- Material: A261
- Production: CNC Billet
Turbine Wheel:
- Exducer Diameter (mm): 5
- Inducer Diameter (mm): 61
- Trim: 7
- Material: K41
- Production: Cast
Compressor Housing:
- Inducer Diameter (mm): 53.4
- Exducer Diameter (mm): 44.2
Turbine Housing:
- Inducer: 45
- Exducer: E
- A/R: 0.57
- Initial Boost Setting: 1.0 kgf/cm²

Customer Feedback:

"I installed the Tomei TB401A-SB01D on my WRX, and the difference is night and day! The spool time is much quicker, and I can feel the power throughout the RPM range." - Alex R.

"The installation was straightforward, and the actuator adjustments are a game-changer. Highly recommend for anyone looking to boost their Subaru's performance!" - Jamie K.
