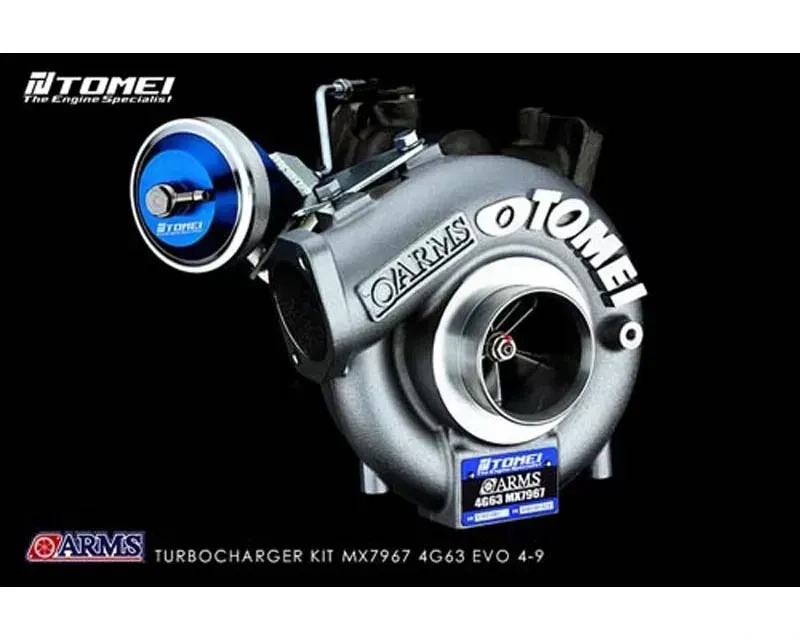

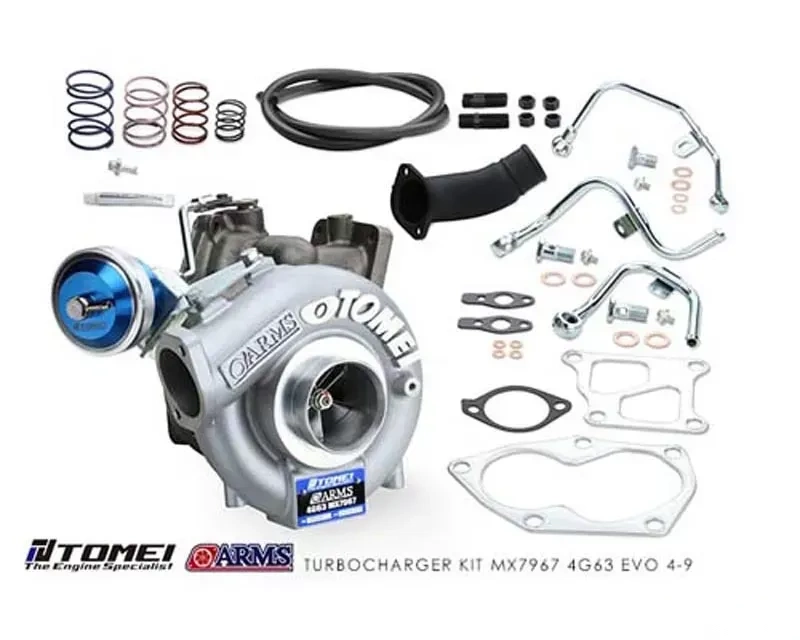

Tomei ARMS MX7967 Turbocharger (TB401A-MT01B)

The Tomei ARMS MX7967 Turbocharger is engineered specifically for the Mitsubishi 4G63 powertrain, pushing the limits of performance with a robust design that focuses on efficiency and reliability. This turbocharger is capable of supporting up to 430 horsepower, making it a prime choice for those looking to enhance their turbocharged setup.

Key Features

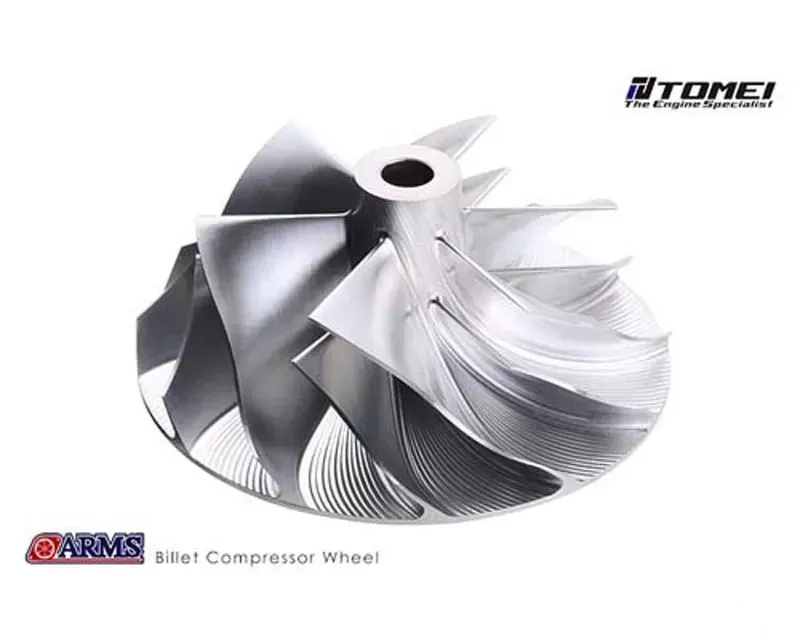

• Billet Compressor Wheel: Crafted from aerospace-grade materials, the compressor wheel is a significant upgrade over traditional cast designs. With a diameter of 61mm at the inducer and 82mm at the exducer, it features a trim of 5 and thinner blades, optimizing airflow and reducing spool time.

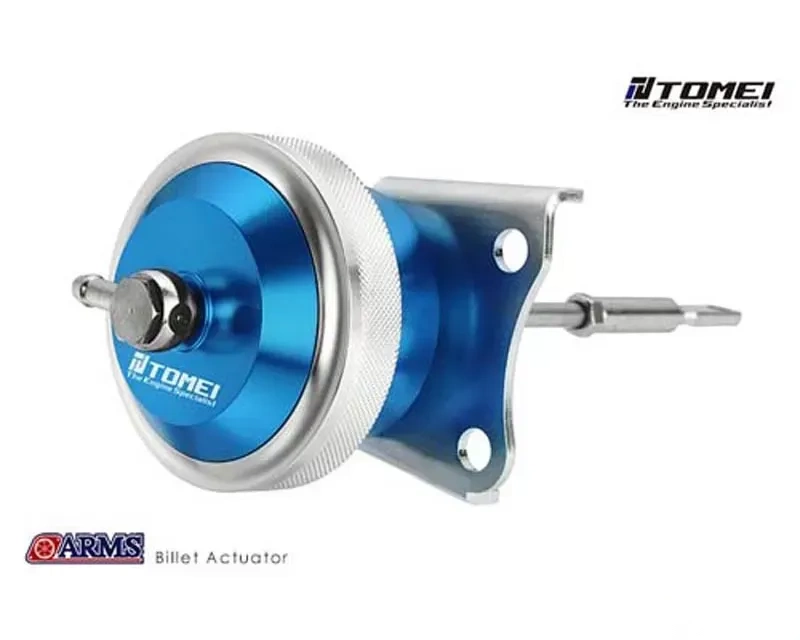

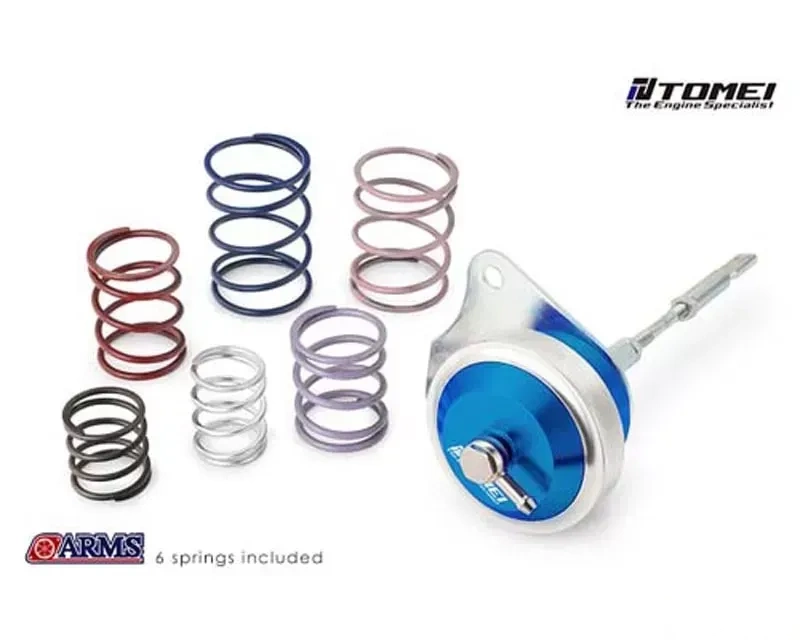

• Multi-Rate Billet Actuator: This turbocharger includes a large capacity multi-rate actuator made from reinforced forged billet. It comes with six springs, allowing for precise boost adjustments—up to three springs can be combined for a tailored setup. The swivel type nipple enhances hose routing flexibility.
• Durable Construction: The turbine wheel, made from K41 material, features a cast production process and measures 61mm at the inducer and 5mm at the exducer with a trim of 7. This ensures longevity and resilience under high-performance conditions.

Specifications

• Model: Mitsubishi 4G63
• Compressor Wheel:
  • Inducer Diameter (mm): 61
  • Exducer Diameter (mm): 82
  • Trim: 5
  • Material: A261
  • Production: CNC Billet
• Turbine Wheel:
  • Exducer Diameter (mm): 5
  • Inducer Diameter (mm): 61
  • Trim: 7
  • Material: K41
  • Production: Cast
• Compressor Housing:
  • Inducer Diameter (mm): 60.6
  • Exducer Diameter (mm): 50.0
• Turbine Housing:
  • Inducer: 4G6
  • Exducer: 4G6
  • A/R: 0.77
  • Initial Boost Setting: 1.0 kgf/cm²

Installation Notes

For detailed installation instructions, click here.

Fitment

• Mitsubishi EVO 4-9 (1996-2007)
