If you're looking to give your Nissan KA24DE a serious boost, the Tomei ARMS Mx8270 Turbocharger Kit is where it's at. This isn't just another turbo; it's a refined piece of engineering that builds on Tomei's legendary M-Series design. They've swapped in a lightweight billet compressor wheel and a multi-rate billet actuator that makes tuning a breeze. You'll notice the difference right off the bat.

Now, let's talk power. This turbocharger is rated for around 450HP, but remember, that's with the right supporting mods. If you're the type who likes to push the limits, the Mx8270 is designed to deliver more oomph than the Mx7960, especially in those higher power bands. So if you've got your sights set on some serious performance, this is your ticket.

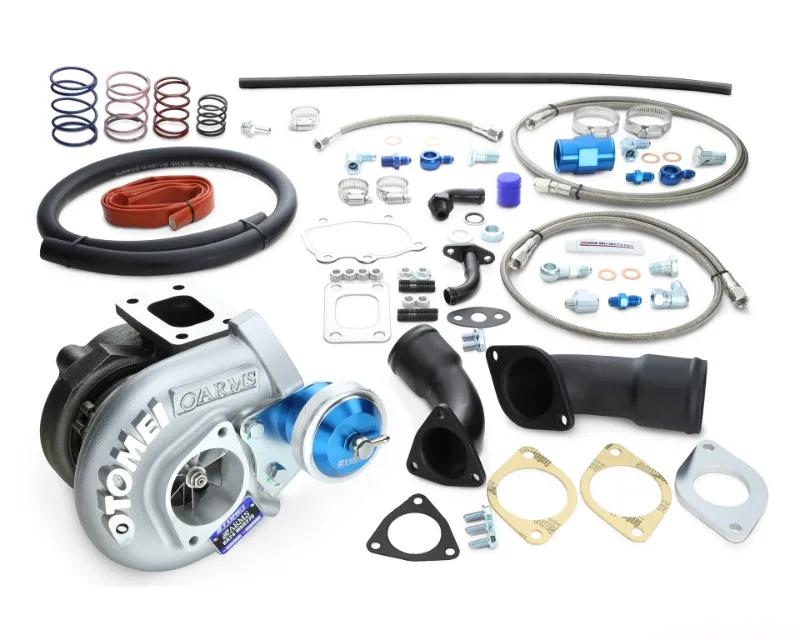

The Mx8270 comes with everything you need for a straightforward install: turbocharger, gaskets, lines, and all the hardware. No hunting around for extra parts—Tomei has made sure you're covered. And speaking of installation, you can check out the full instructions right here.

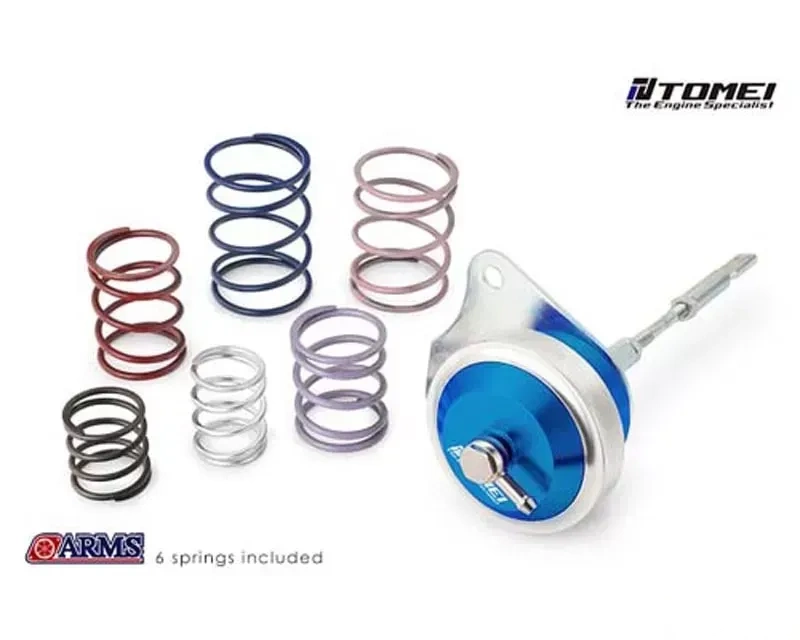

One of the standout features is the multi-rate billet actuator. It's built tough with a reinforced forged construction and comes with six springs. You can mix and match up to three springs to dial in your boost just the way you want it. Plus, the swivel nipple design gives you more flexibility when it comes to routing your hoses—no more awkward bends or kinks.

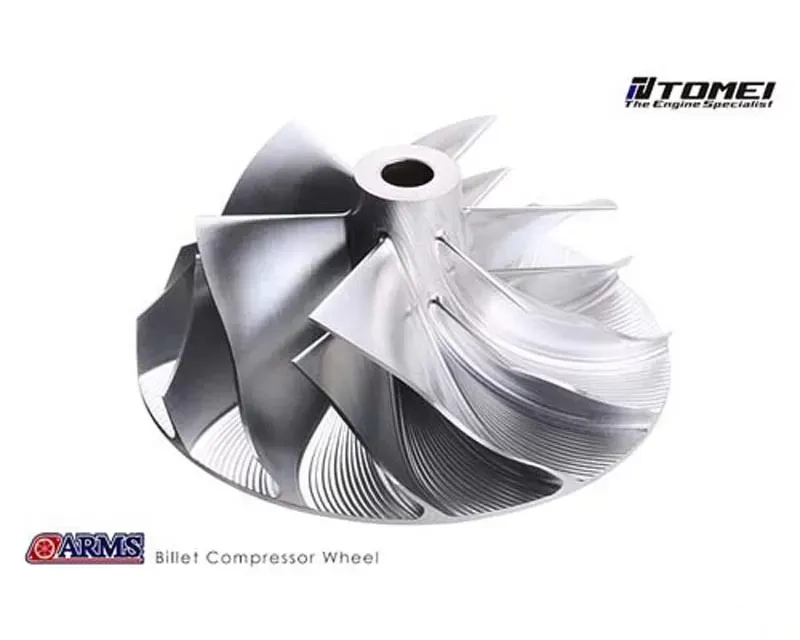

And let's not forget about the compressor wheel. This isn't your average cast wheel. The Mx8270 features a CNC-machined billet compressor wheel made from aerospace-grade materials. The thinner blades and larger surface area mean you'll get improved airflow and faster spool times. It's a game changer for your turbo setup.

Specifications:

• Model: Nissan KA24DE
• Compressor Wheel:
  • (A) IND (mm): 5
  • (B) ExD (mm): 76
  • Trim: 6
  • Material: A261
  • Production: CNC Billet
• Turbine Wheel:
  • (C) ExD (mm): 58
  • (D) IND (mm): 6
  • Trim: 7
  • Material: K41
  • Production: Cast
• Compressor Housing:
  • IND (mm): 53
  • ExD (mm): 38.7
  • A/R: 0.62
• Turbine Housing:
  • IND: T2
  • ExD: SR20DE
  • A/R: 0.57
  • Initial Boost Setting: 1.0kgf/cm2

Fitment:

• Nissan 240SX S13 (1989-1994)
• Nissan 240SX S14 (1995-1998)

So, if you're ready to take your KA24DE to the next level, the Tomei ARMS Mx8270 Turbocharger Kit is a solid choice. It's built for enthusiasts who want to squeeze every bit of performance out of their ride, and it's got the specs to back it up.
