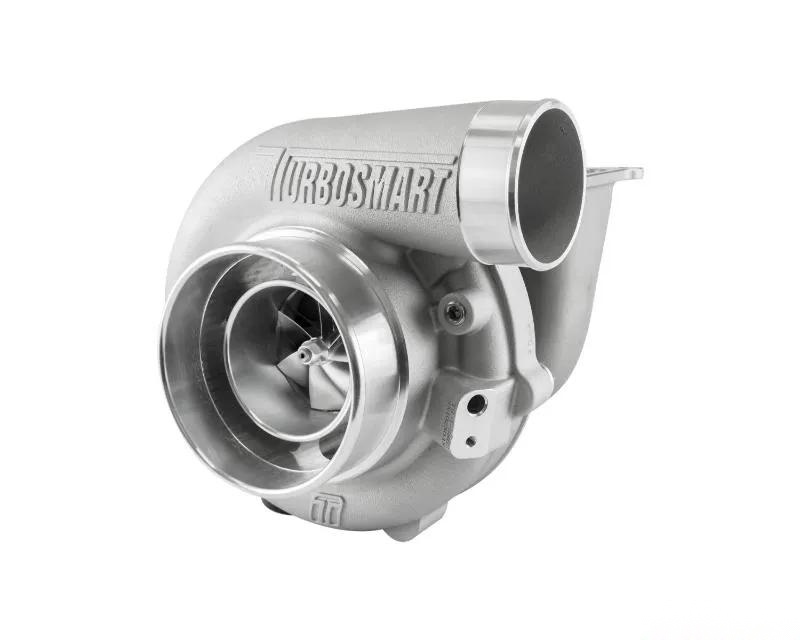

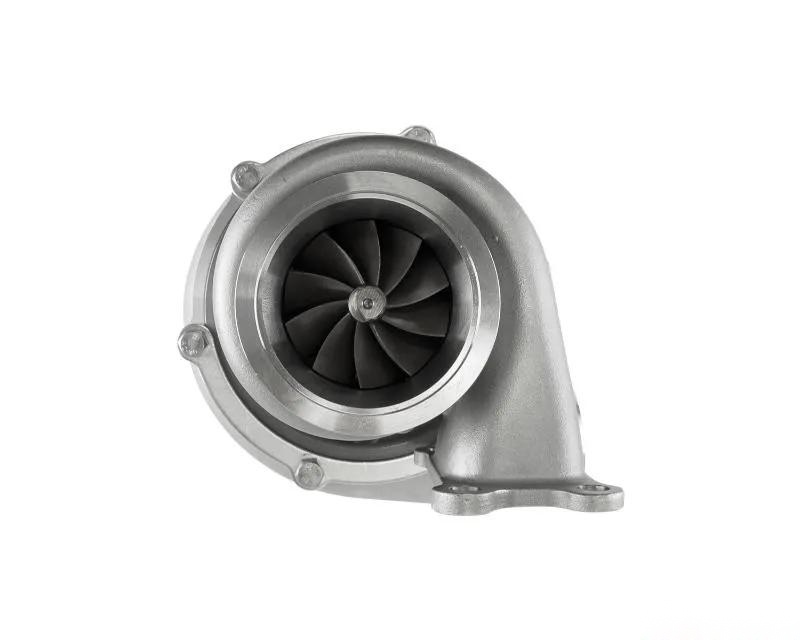

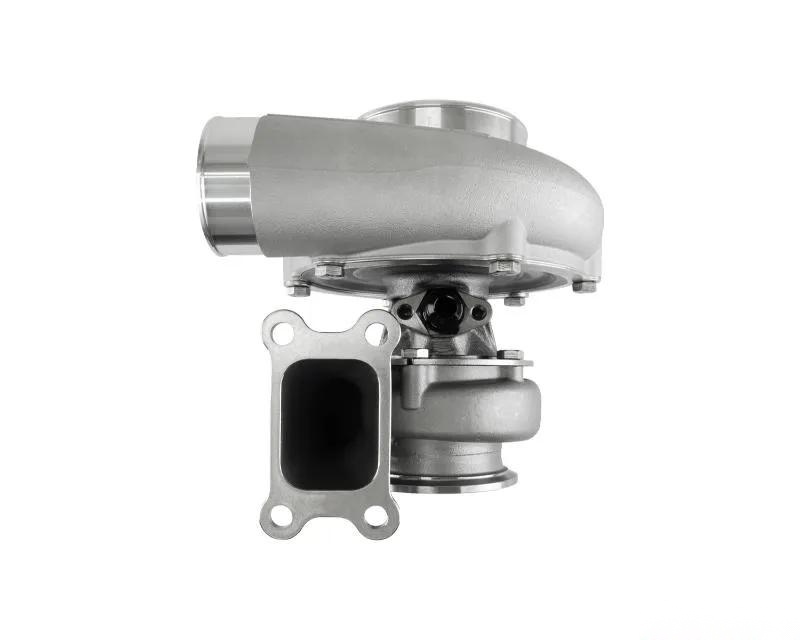

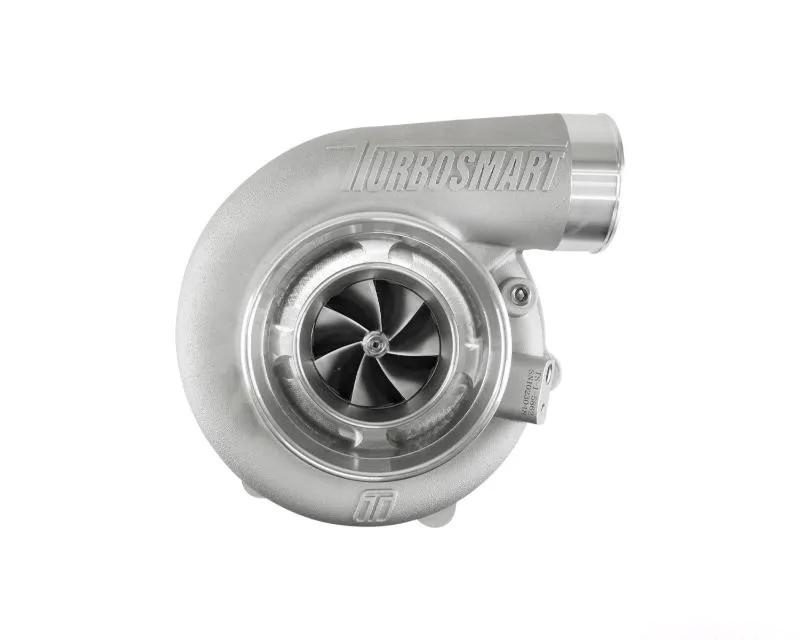

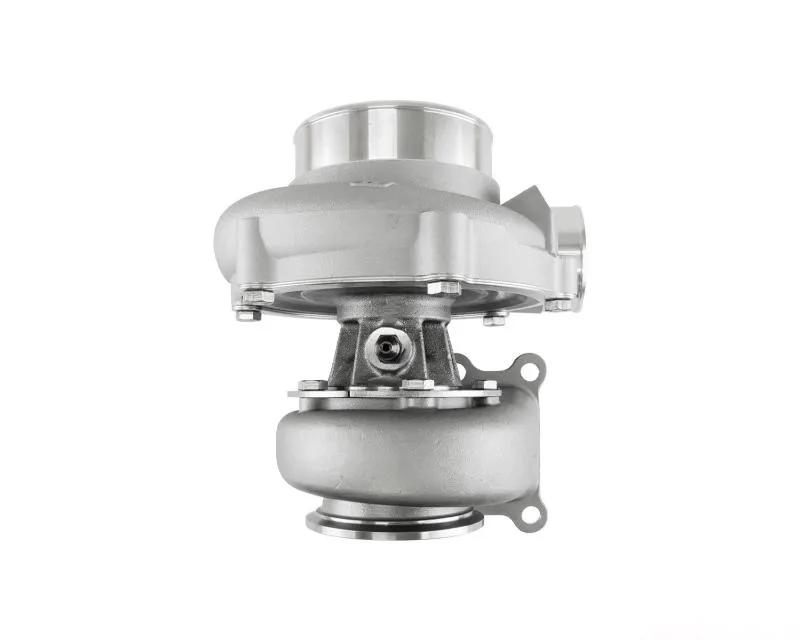

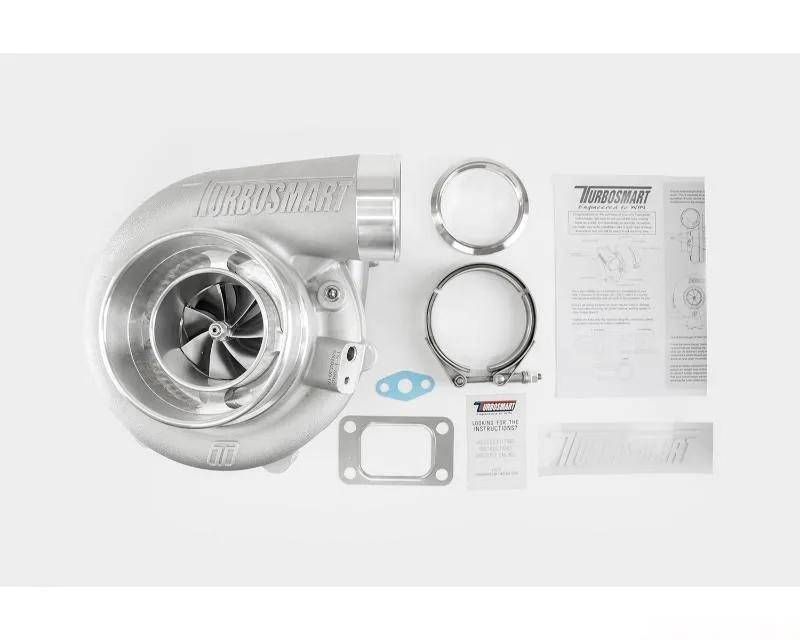

Smaller, Lighter & Faster?The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a Turbocharger range that meets the demands of motorsport and performance enthusiasts alike.



The TS-1 series are oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a main shaft combination which will provide the transient response you never knew possible with the type of performance, quality, reliability and support you?ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds. It is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-1 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines ? While being smaller, lighter and faster in response than other solutions on the market.

Available In:

• TS-1 oil-cooled turbochargers
• TS-2 oil and water-cooled turbochargers
• V-Band, various T3 Flange and T4 Flange options
• Reverse rotation (Selected Sizes)
• Various AR's options
• Internal and external wastegate options available

Features:

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD-driven designed housings for optimal AR's and flow
• T14 Inconel turbine wheel for extreme EGTs
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing

Specifications:

• Compressor Inlet: 4" / 101.6mm
• Compressor Inducer: 64mm
• Turbine Inlet: T3 Flange
• Turbine Exducer: 66mm
• Turbine AR: 0.82
• Turbine Outlet: V-Band (3.00")
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 750-930HP
