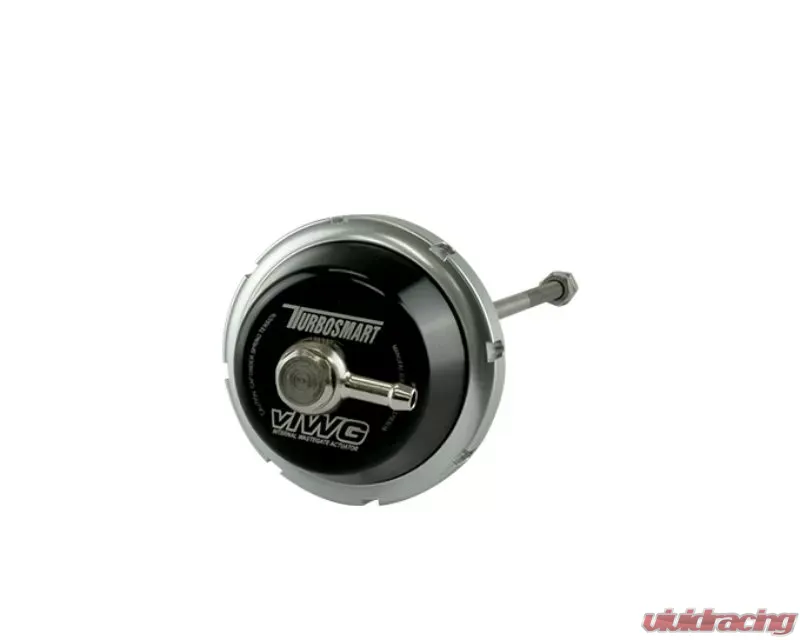

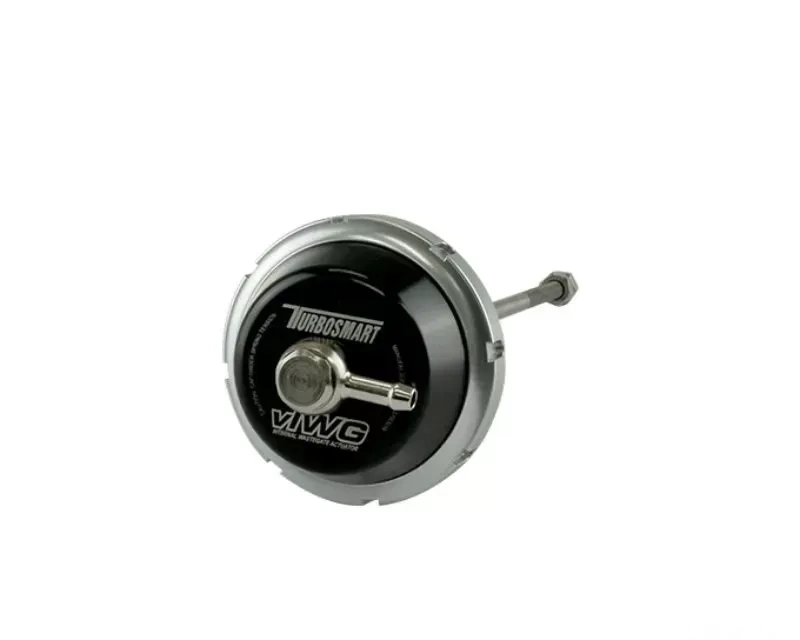

Turbosmart Upgraded Vacuum-operated Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart vIWG Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is recommended for optimal performance. This is a bolt-on fitment for the factory turbocharger as fitted to the 1.6L Prince N14 & N18 Turbo engine found in the R56 Mini Cooper S and John Cooper Works models.

Features:

• Proprietary Silicon Nomex Diaphragm
• High-Grade Billet Aluminum Construction
• Stainless Steel Rods and Clevis
• Turbosmart Unique Locking Collar System
