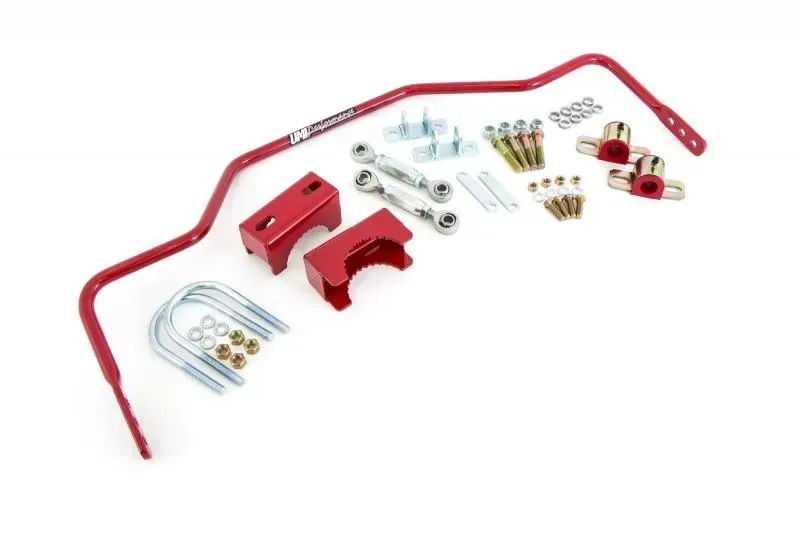

Name: UMI Performance 1978-1988 GM G-Body 3/4" Solid Rear Sway Bar, Auto-x/Road Race
Brand: UMI Performance
SKU: VR-153014046
Price: 499.99 USD
Availability: InStock

Features:
Light weight 3/4" Solid rear sway bar, CNC bent, 4140 CrMo
Three rates, 346 lb/in, 262 lb/in, 205 lb/in
Designed to clear all rear ends - Factory OEM 7.5, GN 8.5, 12-Bolt, 9", M9, S60 and others
Heavy duty race style CrMo spherical rod ends with Teflon race
High strength 4140 CrMo zinc-plated u-bolts
Laser cut sway bar mounts with grip teeth and reinforcement gussets
1" Billet steel hex adjuster for extreme strength
Premium greaseable polyurethane bushings
100% bolt in installation!
Durable long lasting powder coat
Axle Tube Diameters:
Strange Engineering and Currie rear ends use 3" diameter axle tubes
Moser Engineering 12-bolt rear ends use 3" diameter axle tubes
Other brand rear ends will vary, please check your axle tube diameter before ordering.

Moser Engineering 9" Rear ends manufactured after early 2002 use 3" Axle Tubes. Rear ends manufactured prior to early 2002 use 3.25" axle tubes. Please verify diameter before ordering.

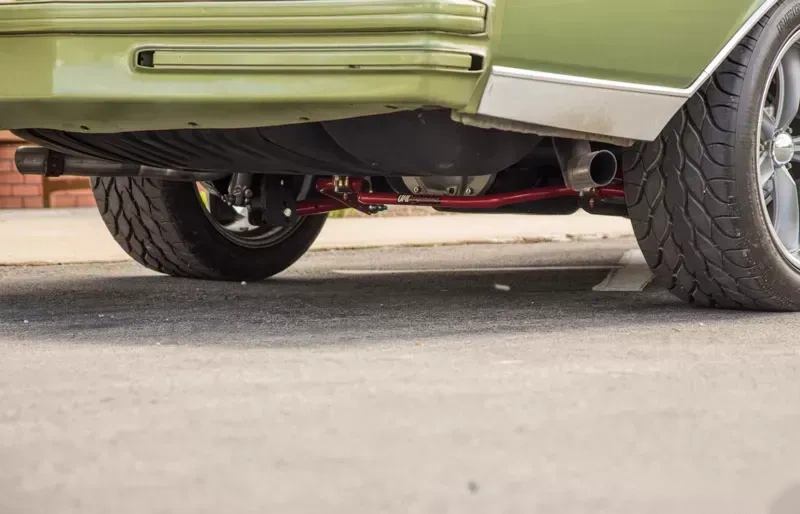

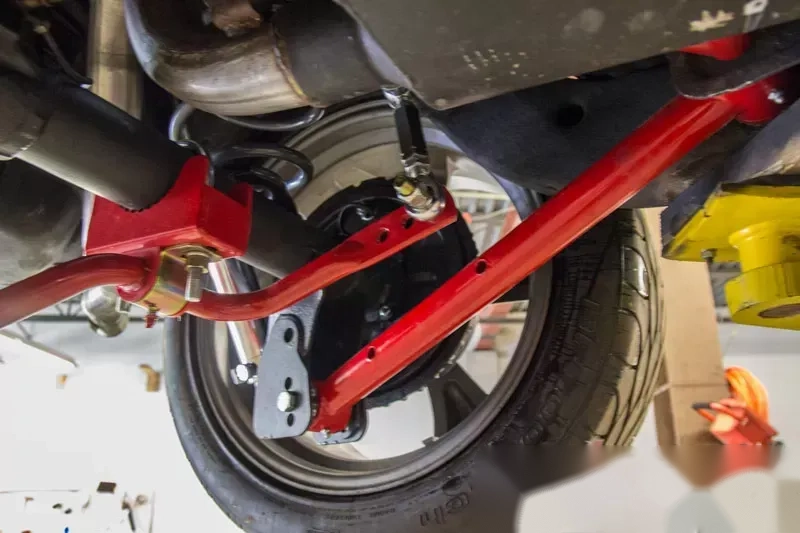

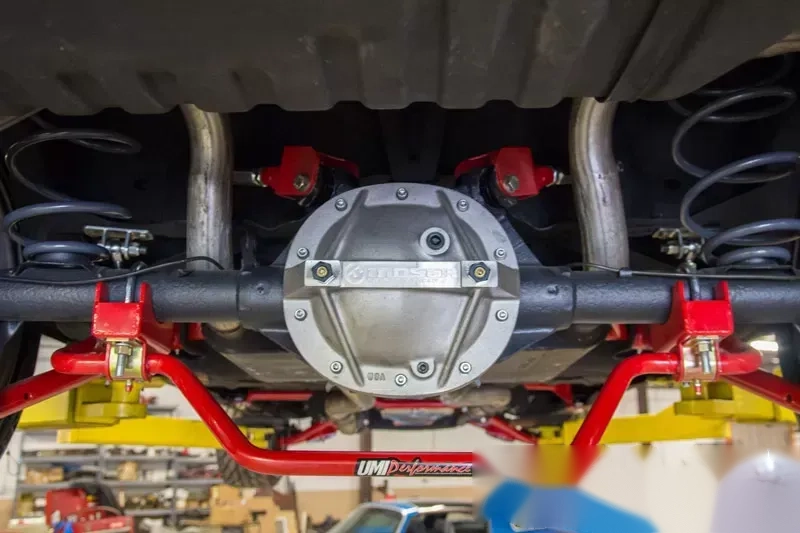

UMI's G-Body solid rear sway bar is designed specifically to excel when used in autocross or road racing applications. The G-Body chassis when coupled with the common high rate PT Bar lift the inside rear tire during competition. The lower rate 3052 Bar inside rear wheel lift while still providing roll resistance and enhancing rotation. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. UMI's tried and true CNC machined clamping system allows differential housing mounting on 2.75", 3" and 3.25" diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place byur 3/8" eners. Drilling through the crossmember is required and a template /instructions are included. Choose the longest hole for street and high speed courses, middle hole for medium, and the shortest hole for maximum rotation.

Features

Material: Steel
Mounting Hardware Included: Yes
Adjustable: Yes
Bushing Material: Polyurethane
Bushing Color: Red
Construction: Tubular
Finish: Red Powdercoated
Mounting Method: Bolt On
Pre-Greased: No
Suspension Grade Type: Performance
Bushings Included: Yes
Front Or Rear Suspension: Rear
Grade Type: Performance
