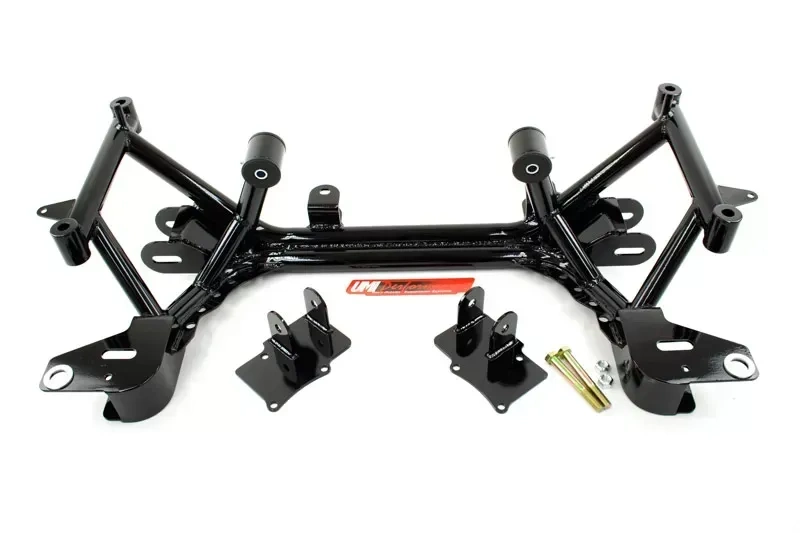

The UMI Performance big block/small block K-member allows the installation of a traditional Chevrolet small block or big block into a 1993-2002 Camaro or Firebird. The UMI tubular K-member features integrated polyurethane mount mounts and fabricated mounting clam shells for maximum weight savings and installation ease. K-member includes power steering rack mounts and is a direct bolt in application.

Note: Although this K-member allows easy installation of a small block or big block Chevrolet engine modifications to firewall and other areas may be necessary for proper engine clearance.

K-Member Benefits: - Automatically reduces 25lbs of front end weight - Offers additional clearance for headers & turbo piping - A-Arm slots lengthened a 1/2" over factory for additional adjustment - Rear main cross tube lowered for oil pan protection & coverage - Uses integrated motor mounts for maximum weight reduction

Build Features: - Main center tube constructed of 1.500??????? x 0.120??????? DOM seamless steel tubing - Additional cross braces use 1.250??????? x 0.120??????? DOM seamless steel tubing - Entire K-Member features both TIG & MIG welded construction for superior strength - Front & rear A-Arm mounts CNC machined & fabricated from 0.188" thick steel - Rear A-Arm mounts gusseted to with-stand extreme side loads & pressure - Dual tube center section adds increased strength over any competitors design - All mounting plates are CNC machined to ensure hole to hole accuracy - Factory locator pins included for easy installation & exact fit - Completely fixture welded to ensure factory fitment with no grinding or cutting - Standard power steering rack mounts included - Durable powder coat finish, available bright red or gloss black
