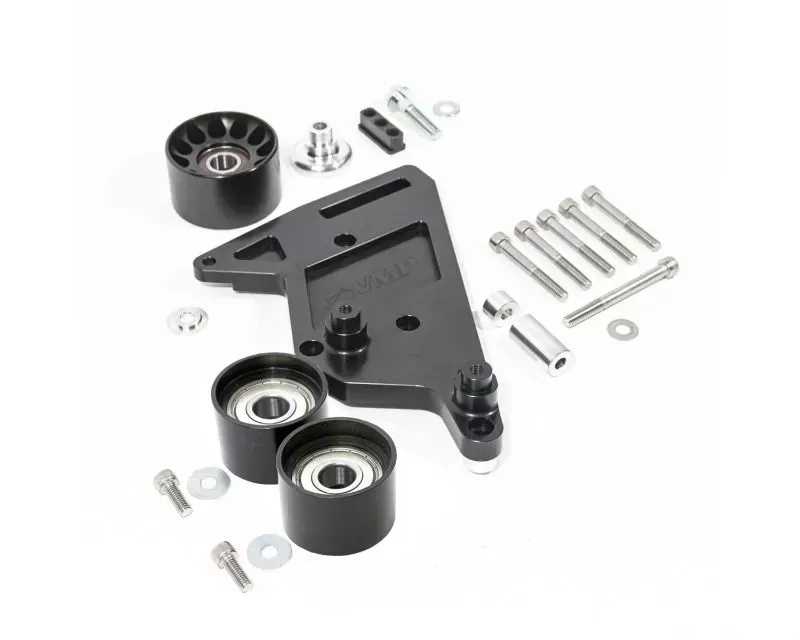

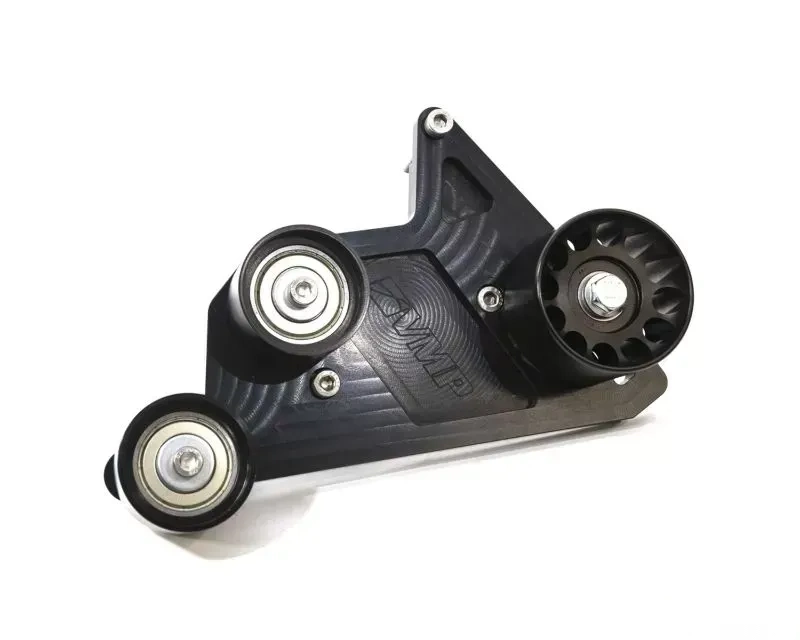

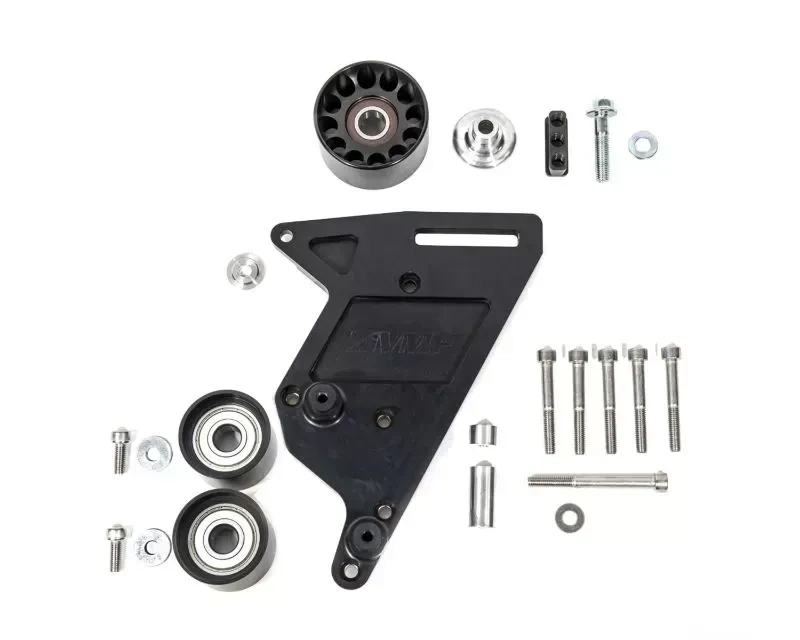

The VMP Bomber Bracket improves belt-wrap on blown-down style supercharger systems such as the VMP Gen3R and Roush 2.3 L supercharger kits. This helps your supercharged 11-17 Mustang/F150 avoid belt slip even with smaller pulleys. This bracket may be installed in under 2 hours, in place of the Roush upper FEAD bracket or VMP no-grind FEAD bracket. The Bomber Bracket has a sliding auxiliary idler that allows you to add as much or as little tension on the belt as you want, regardless of the supercharger pulley size.

Features:

• 11-17 Roush and VMP Supercharger applications
• Compatible with VMP no-grind and Roush grind style FEAD system
• Completely replaces Roush upper FEAD bracket (RPP-1314-8B653U-AA) and VMP Odin style no-grind "boomerang" FEAD bracket.
• Compatible with original Roush "spider bracket" and tensioner with built-in idler (VMP-50LSPIDER) or VMP Odin style tensioner (VMP-SUT009).
• Black anodize
• 6 rib version (61mm idlers) VMP-SUT010
• 8/10 rib version (58mm idlers) VMP-SUT012
• Adjustable locations to assist in more or less tension
• Installs in approximately 1-2 hours.
• works with new VMP 20% OD 10-rib kit that uses VMP-918078 balancer, not compatible with legacy 10-rib kits sold 2020 and earlier.
• Compatible with: VMP-SUT022 AC Bypass bracket 10-rib

Fitment:

• Ford Mustang 2011-2017
• Ford F-150 2011-2017
