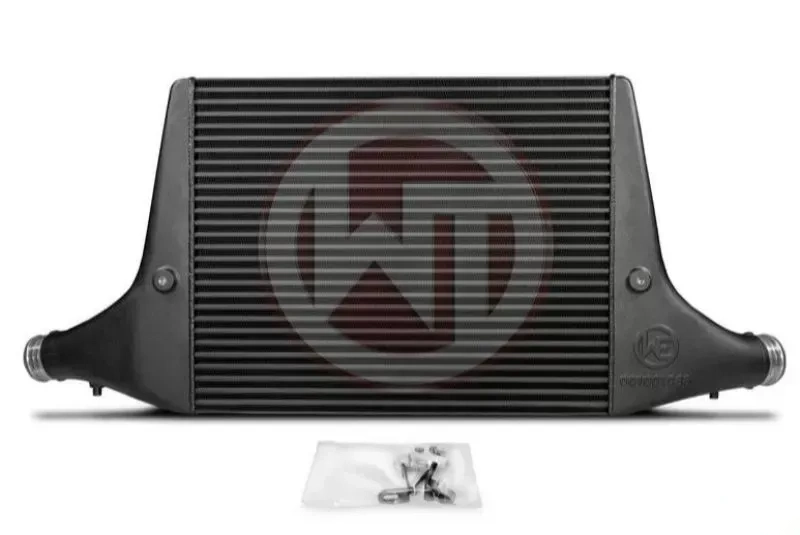

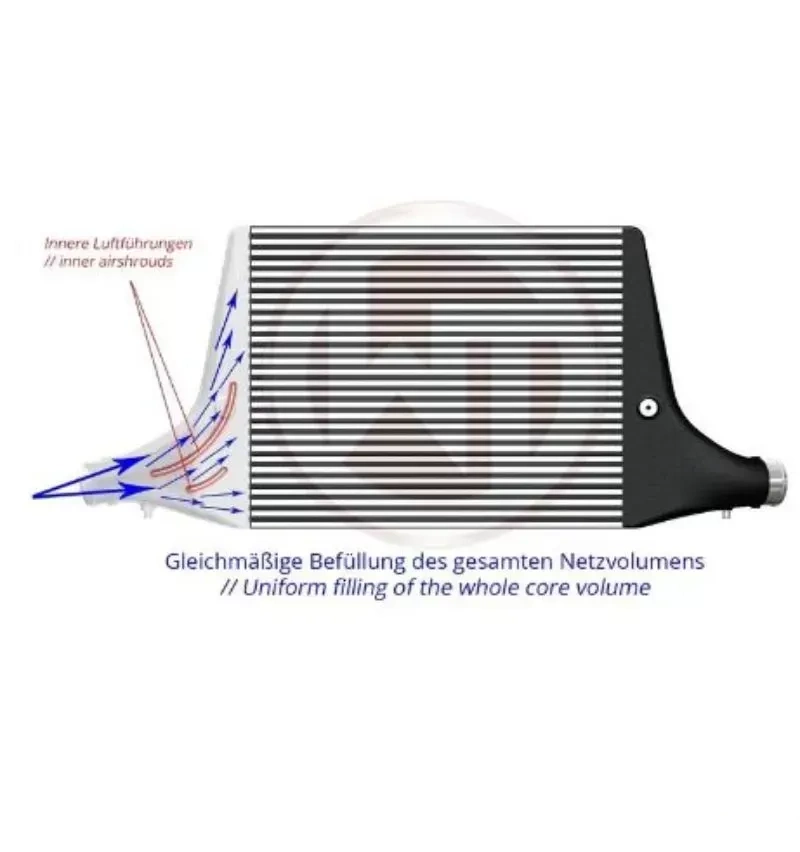

The Competition Intercooler has the following core dimensions (550mm x 445mm x 70mm = 17.130cm³). The high performance intercooler core provides a 134% larger frontal area and 105% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow.

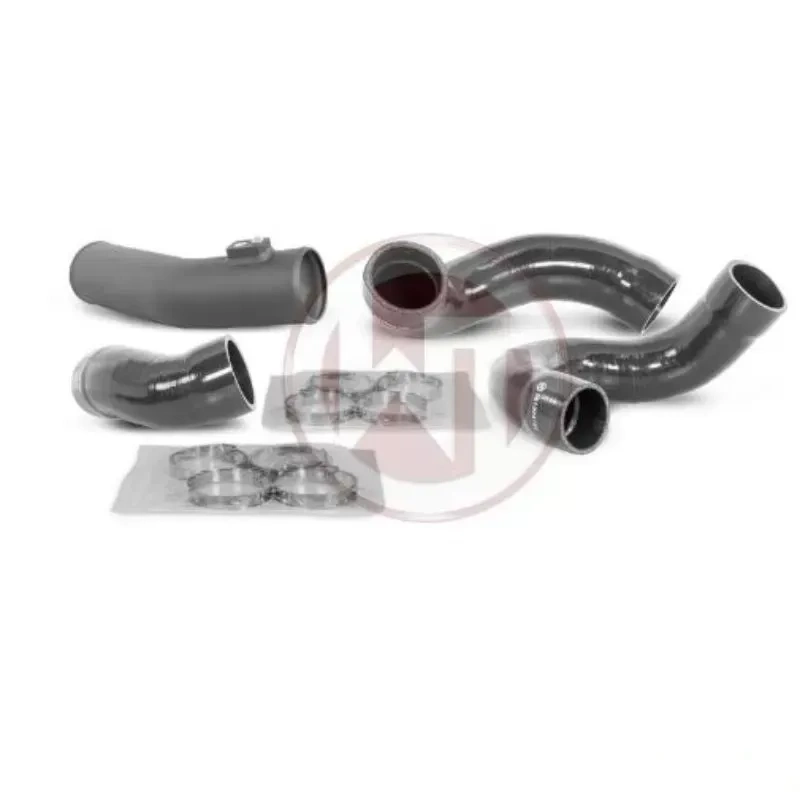

The connection diameters are ⌀62mm at the intercooler inlet and ⌀67mm at the intercooler outlet. This kit is optionally available with complete charge air piping and includes 1 aluminum charge pipe and 3 reinforced silicone hoses.

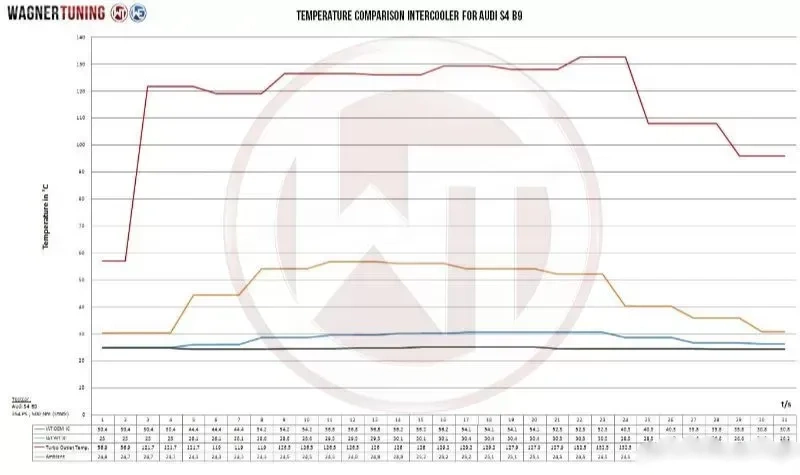

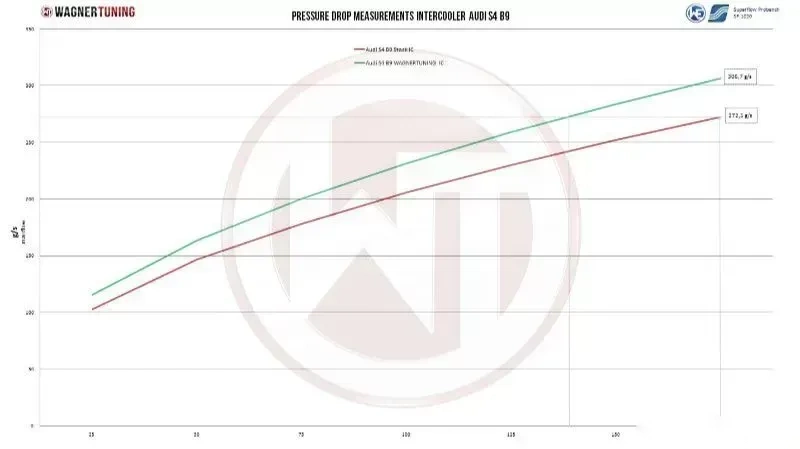

The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it's size the weight of the complete intercooler is only 9.5kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% plug and play. All of our products undergo rigorous quality control.

Dimensions stock Intercooler: 720mm x 145mm x 80mm
Volume: 8.35 Liter
Area: 1044 cm²

Dimensions WAGNERTUNING intercooler: >550mm x 445mm x 70mm
Volume: 17.13 Liter
Area: 2447 cm²

Fitment:

• Audi S4 B9 3.0TFSI 260KW/354PS 2016-2023
• Audi S5 F5 3.0TFSI 260KW/354PS 2016-2023


(for US-models)

Notes:

• Mounting brackets are included
• Charge Pipe not included
