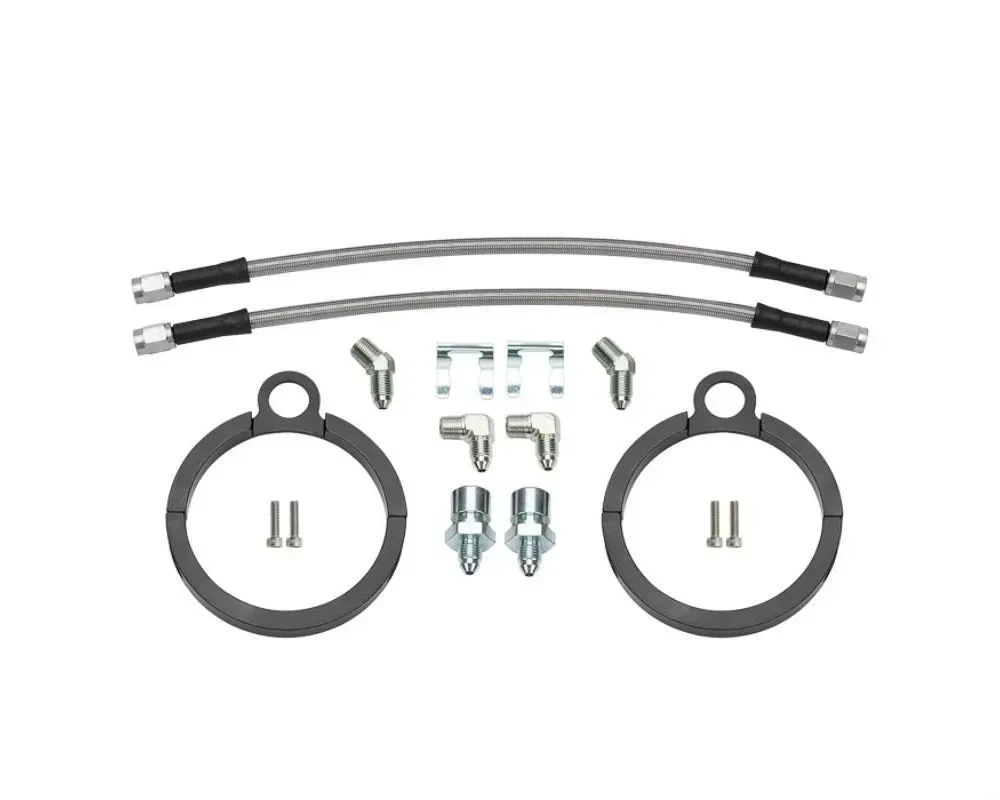

Wilwood's stainless steel braided Flexline Kit with Weld-on bracket tabs are manufactured to high-quality standards. When welded in place, these brackets securely affix the juncture between 3/16" chassis hardlines and flexlines to prevent vibration and breakage. Premium grade 12.00" flexlines and fittings have been included with a choice of 45-degree or 90-degree NPT fittings at the caliper. Wilwood highly recommends using these top-quality flexlines to replace the OE rubber hoses.

Specifications:

• Length-12.00
• Size-3
• Chassis Fitting Size-3 to 3/8-24 IF
• Inlet Fitting-3 Female
• Inlet Fitting Angle-Straight
• Outlet Fitting-3 Female
• Outlet Fitting Angle-Straight
• Caliper Fit Angle-90 Degree
• Caliper Fit Thread-1/8-27 NPT
• Weight (lb)-0.79
• Qty Each-1
• Qty per Kit-2
• Chassis Clip-300-15780
• Line Bracket-250-16990
