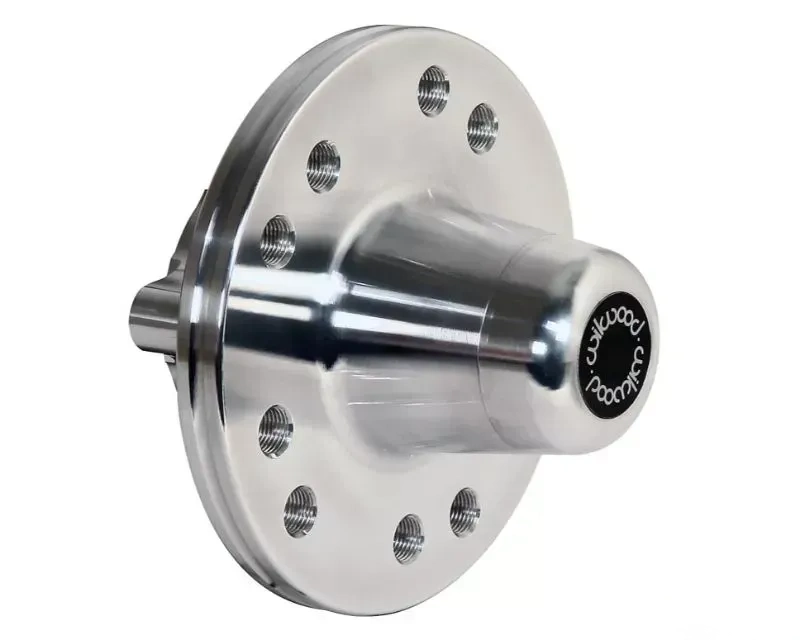

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

Features:

• Aluminum
• Bare
• Mount Type: Vented
• Rotor Mount Bolt Circle (in) 5 x 3.88
• Rotor Offset Dimension (in) 0.81
• 8-Bolt Type 8 x 7.00
• Bolt Circle 1 (in) 5 x 4.50
• Stud Dia 1 (in) 1/2-20

Fitment:

• Chevrolet Impala 1965-1968
• Chevrolet Corvette 1969-1982
